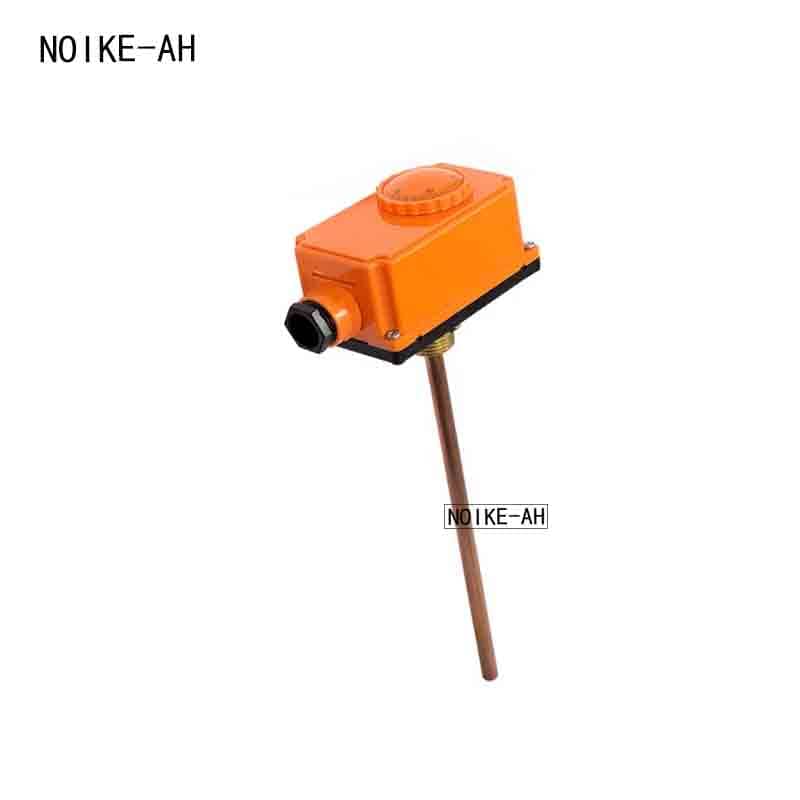

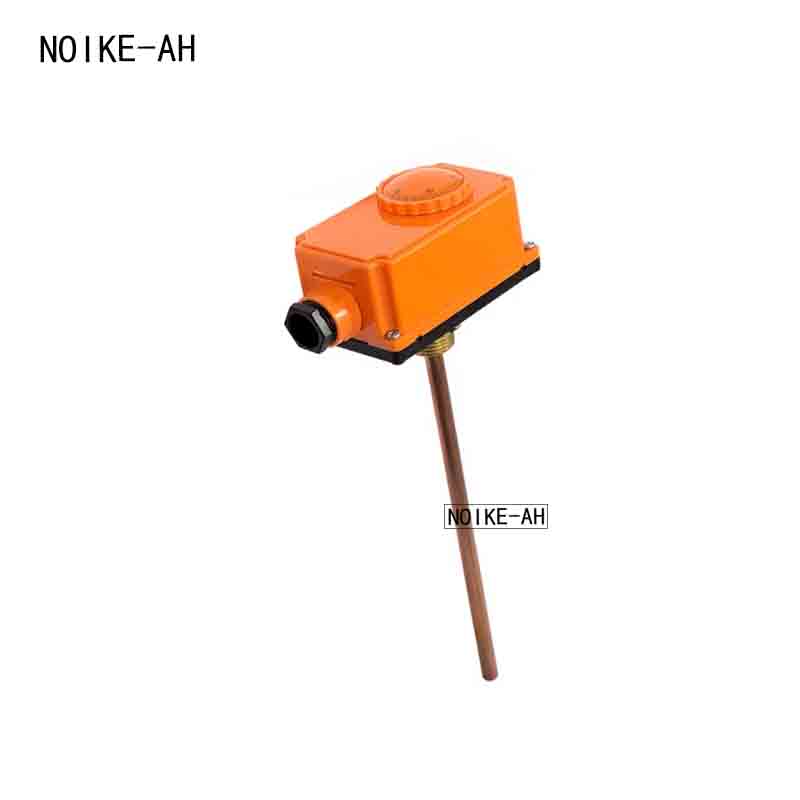

Adjustable temperature switch NC10 series

Principles Characteristics

Adjustable liquid expansion temperature switch, compact IP40 protection design, micro control switch that can be rotated. A reliable temperature control with a setting range up to 210°C. Provide complete temperature switch package.

High precision

simple design

low lag

easy to install

Temperature switches NC10can meet the different requirements for temperature control in hydraulic, lubricating and traditional systems. They are used to detect whether the temperature exceeds the maximum or minimum limit

Technical Parameters

adjustable range    hysteresis      Maximum temperature       Serial number

0-90                         4±1K                       130                                90

40-210                      9±2K                      250                                210

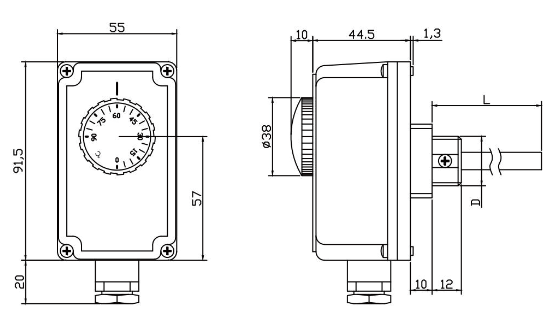

Size Chart（mm）

Wiring diagram
