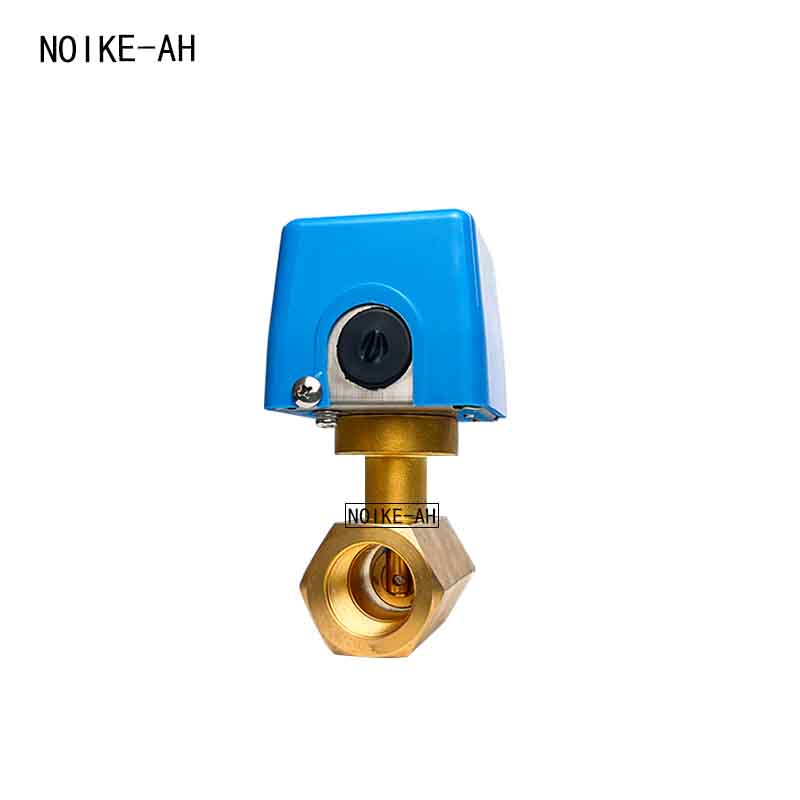

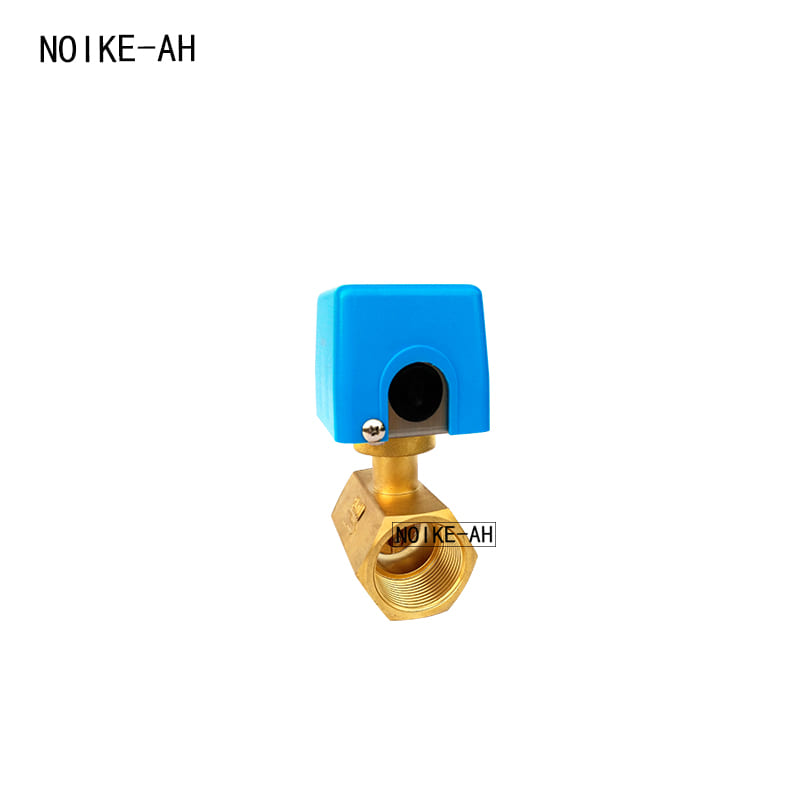

Brass Baffle Flow Switch NC01D

Principle Characteristics

Mechanical flow switch, with built-in spring supported baffle,triggers the fretting switch when the flow reaches the prefabricated value. On-line installation, minimal pressure loss, good repeatability,anti-fouling ability, accurate switch setting through knobs. The mechanical part is completely isolated from the electronic part.

Product Application

Gas-liquid dual type, industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning suitable for pipe diameter ≤50mm

Technical Parameters

◇ scope setting: see the table below

◇ Repeatability: ±2.5 total range

◇ Wiring mode: terminal wiring

◇ output: normally open + normally closed (250VAC,3A)

◇ Withstand pressure: 16bar

◇ ambient temperature: -25… 85 °C

◇ Dielectric temperature: 90°C

◇ protection level: IP33

main body: stainless steel

process connections: brass

Connecting rod: brass

baffle: brass

◇shell: ABS

◇seal: NBR

IP67 Protective shell
