Specification
Product Features
- Using intelligent frequency scanning technology for point level detection
- Reliable detection of various media
- Support various process connections
- Suitable for the healthcare industry and industrial applications
- Certified by ship, ATEX, WHG, and cULus
- Medium temperature up to 200 ° C
Technical Specifications
- Measurement principle: Material level switch (frequency scanning)
- Medium characteristics: DC>1.5
- Delay: ± 1mm
- Repetition accuracy: ± 1mm
- Response time: 0.1s, typ. 0.2s, max
- Damping time: 0-10s, adjustable
- Material of liquid receiving components: PEEK Natura
316L（1.4404）
304 (1.4301), optional - Surface roughness of liquid receiving components: Ra ≤ 0 μ m
- Output type: PNP/NPN
- Switch logic: normally closed (NC)/normally open (NO)
- EMC electromagnetic radiation: EN 61326, installed in a closed metal can
- EMC electromagnetic immunity: EN 61326, installed in a closed metal can

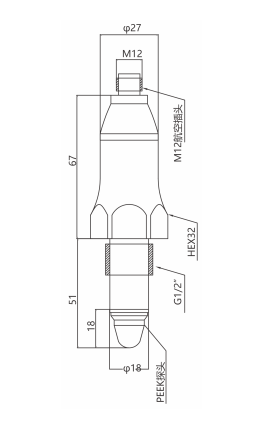

Dimensional drawing (mm)
