Differential Pressure Transmitter NT310 series

Principle structure

The NT310 micro differential pressure transmitter mainly uses OEM silicon piezoresistive differential pressure core conversion to output a standard industrial signal corresponding to this pressure. Using a metal shell, compact structure, lightning protection design, strong anti-interference ability, high precision, and good stability.

Product Application

Suitable for differential pressure, pressure and negative pressure measurement of dry gases, such as boiler air supply, HVAC, underground ventilation, power, coal industry and other fields.

Technical Specifications

• Measurement medium: dry and non corrosive gas
• Pressure range: -10~0~10KPa
• Accuracy: 0.5% FS
• Maximum static pressure: 70KPa (single end maximum pressure 70KPa)
• Overload pressure: 200% FS
• Power supply: 15-36VDC
• Output signal: 4… 20mA, 0… 10V, RS485
• Medium temperature: -40… 80 ℃
• Environmental temperature: -40… 80 ℃
• Seismic performance: 25g (20… 200Hz)
• Temperature drift: 0.1% FS/° C
• Protection level: IP54

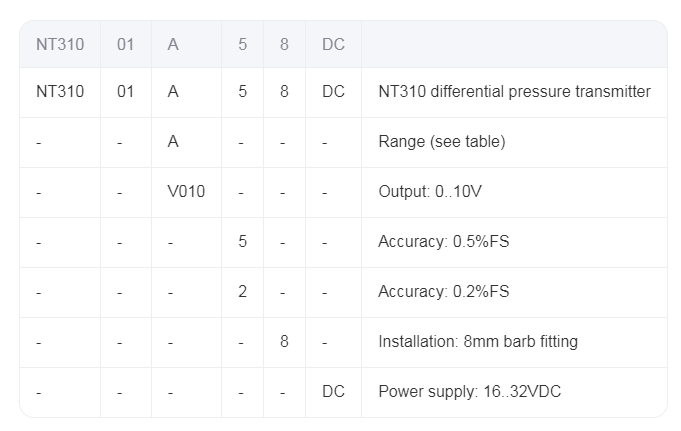

Selection Table
