Digital Display Temperature and Humidity Sensor NK210 Series
- Brand：NOIKE-AH
- Model：NK210 Series
Specification

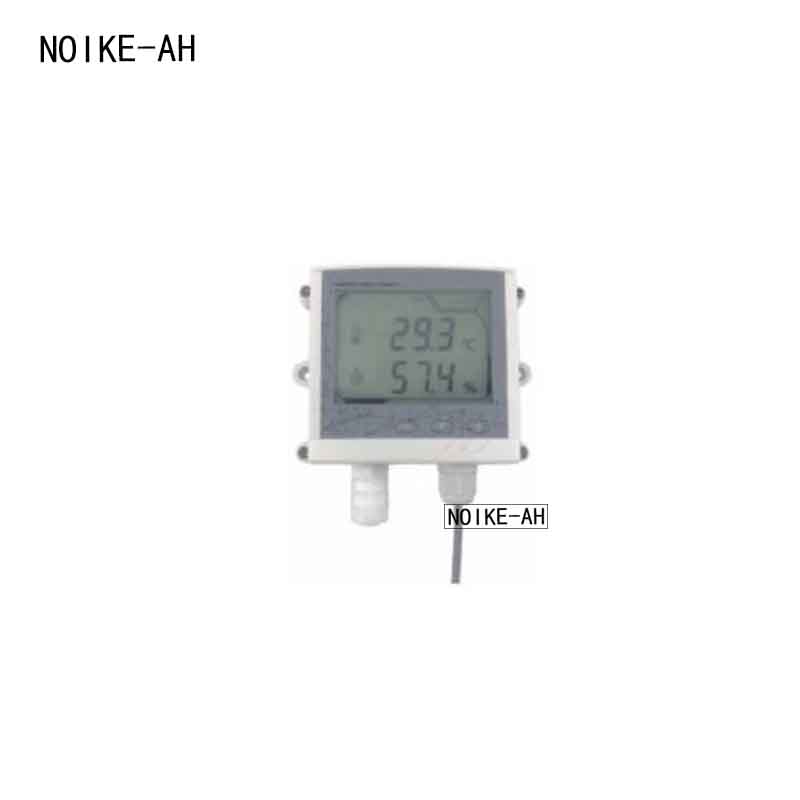

Digital Display Temperature and Humidity Sensor NK210 Series
Product Overview
The NK210 series intelligent temperature and humidity products are high-precision, stable, and long-lasting, suitable for applications in various scenarios. They can adopt split-type probes or integrated probes and are equipped with mounting brackets for easy wall-mounted installation. This series of products includes two wired output solutions: 4-20mA current (HT-A) and RS485 (HT-R). It is equipped with an LCD display, which can display the current temperature and humidity values while transmitting data remotely. At the same time, this series of temperature and humidity products also includes intelligent terminals with GPRS/LORA/NB-iot wireless output, and the output protocol supports UDP/TCP/MQTT/COAP protocol modes.
Product Applications
It is applicable to scenarios that require temperature and humidity monitoring, such as pump rooms, equipment rooms, factory workshops, exhibition halls, etc.
Product Features
Technical Parameters
| Model | TH210-A | TH120-R | TH120-G/L/N |
|---|---|---|---|
| Output Signal | 4-20mA | RS485 | GPRS/LoRA/NB-iot |
| Protocol Type | – | ModbusRTU | UDP/TCP/MQTT/CoAP |
| Supply Voltage | 9-28VDC | – | – |
| Humidity Measurement Range | 0-100%RH | – | – |
| Temperature Measurement Range | For NK210 series | – | – |
| Humidity Accuracy | ±3%RH (5-90%RH) | – | – |
| Temperature Accuracy | ±0.2°C (at 25°C) | – | – |
| Resolution | Temperature: 0.1°C; Humidity: 0.1%RH | – | – |
| Long-term Stability (Temperature) | <0.2°C/year | – | – |
| Long-term Stability (Humidity) | <0.5%RH/year | – | – |
| Installation Method | Wall-mounted | – | – |
| Response Time | Temperature: 5s; Humidity: 8s 1/e (63%) | – | – |
| Probe Installation Method | Integrated/split-type (the length of split-type cable can be customized) | – | – |
Selection Table
| NK210- | – | P2 | – | TS1 | L1 | Detailed Description |
|---|---|---|---|---|---|---|
| NK210 | – | – | – | – | – | Digital display temperature and humidity sensor |
| A | – | – | – | – | Signal output: 4…20mA | |
| R | – | – | – | – | – | Signal output: RS485 |
| G | – | – | – | – | – | Signal output: GPRS |
| LR | – | – | – | – | – | Signal output: LORA |
| NB | – | – | – | – | – | Signal output: NB-iot |
| P2 | – | – | – | – | Supply voltage: 9-28VDC | |
| – | – | – | – | – | Shanghai Zanke NK210 series | |
| – | – | – | – | – | Accuracy: Temperature: ±0.3°C; Humidity: ±3%RH | |
| – | – | TS1 | – | – | Temperature and humidity range: (-20~80°C) (0~100%RH) | |
| – | – | TS2 | – | – | Temperature and humidity range: (-20~120°C) (0~100%RH) | |
| – | – | – | – | – | Customizable range | |
| – | – | – | LO | – | Probe type: Integrated probe | |
| – | – | – | L1 | – | Probe type: Probe cable 1m | |
| – | – | – | L3 | – | Probe type: Probe cable 3m | |
| – | – | – | L5 | – | Probe type: Probe cable 5m |
Wholesale of Digital Display Temperature and Humidity Sensor NK210 Series
Shanghai Zanke is a wholesale manufacturer of the digital display temperature and humidity sensor NK210 series. At this stage, the main products of Shanghai Zanke Company include flow switches, pressure switches, temperature switches, electromagnetic flowmeters, vortex flowmeters, turbine flowmeters, ultrasonic flowmeters, material (liquid) level flowmeters and other instruments. Application industries: petroleum chemical industry, natural gas, machinery, electric power, metallurgy, building materials, food and pharmaceutical manufacturing, agriculture, environmental protection, etc. (Our company can customize instrument specifications according to users’ special requirements and on-site working conditions, and provide installation and commissioning services.)
Well, that’s all for today’s introduction to the working principle, application fields, characteristics, installation requirements, use and maintenance of the digital display temperature and humidity sensor NK210 series. If you have any other questions, please feel free to contact us, and we will reply to you as soon as possible after receiving your inquiry.
