Electronic Digital Differential Pressure Switch Sensor NT80D series

Principle Characteristics

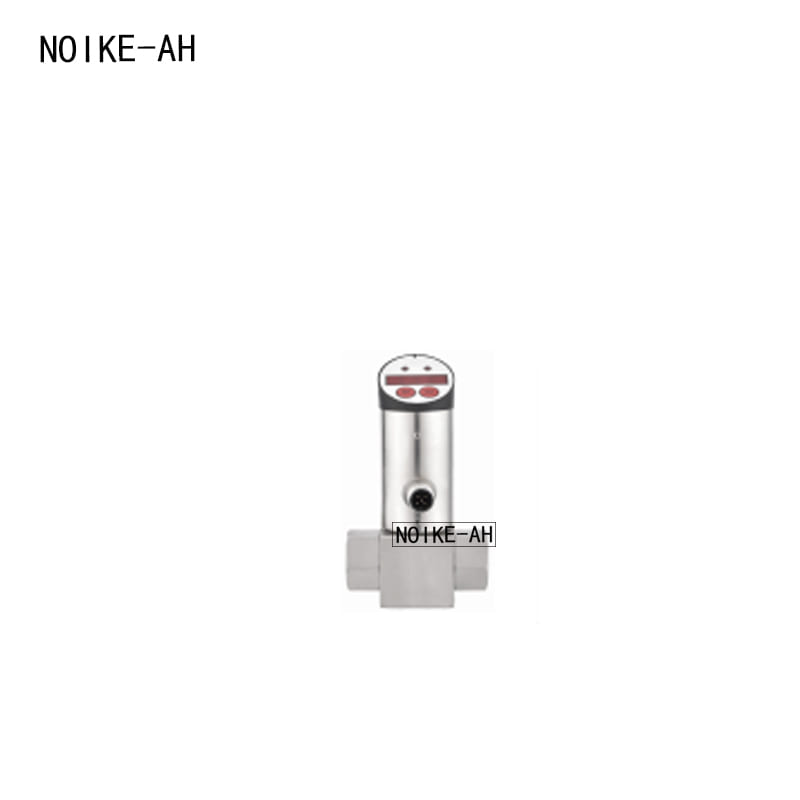

The NT80D uses a diffused silicon sensor for pressure measurement, and the signal is processed by a post-processing circuit and converted into a standard industrial electrical signal for output and display. The all metal shell design and high brightness LED digital display enable this series of products to be used in various industrial applications. The double bond design and menu make the product more convenient to use, and multiple connection methods can fully meet various specific installation needs. The display head that can rotate 330 ° ensures the best viewing angle under different installation methods.

Technical Specifications

• Supply voltage: 12… 30Vdc
• Measurement range: 0-0.1bar to 25bar
• Maximum withstand voltage: 300% of full range
• Supply voltage: 12… 30Vdc
• No load current consumption: maximum 30mA, 24Vdc power supply
• Output type: PNP, NPN optional, normally open and normally closed, S1, S2 can be set
• Output current:<500mA Response time<10ms
• Switch accuracy: ≤± 0.5% range
• Current type analog output: ≤± 0.5% range
• Output type: 4… 20mA can be set
• Load RA: ≤ 0.5KOhm
• Linearity: ≤ 0.5% range
• Wiring protection: reverse phase, overload, short circuit protection
• Display: Red 4-digit 8mm high brightness LED
• Display range: 999… 9999
• Accuracy: ≤± 0.5% range
• Stability (annual drift): ≤± 0.3% range
• Medium temperature: -20… 85 ℃
• Environmental temperature: -20… 80 ℃
• Storage temperature: -30… 80 ℃
• Material Science:
• Header shell: Engineering plastic
  Shell: Stainless steel 304
  Media contact part: Stainless steel 316L
• Protection level: IP65
• Outgoing method: M12x1 connector

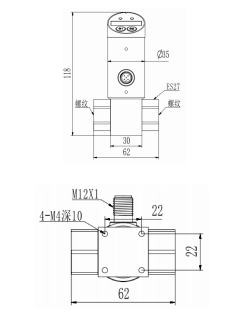

Dimensional drawing (mm)

Selection Table
