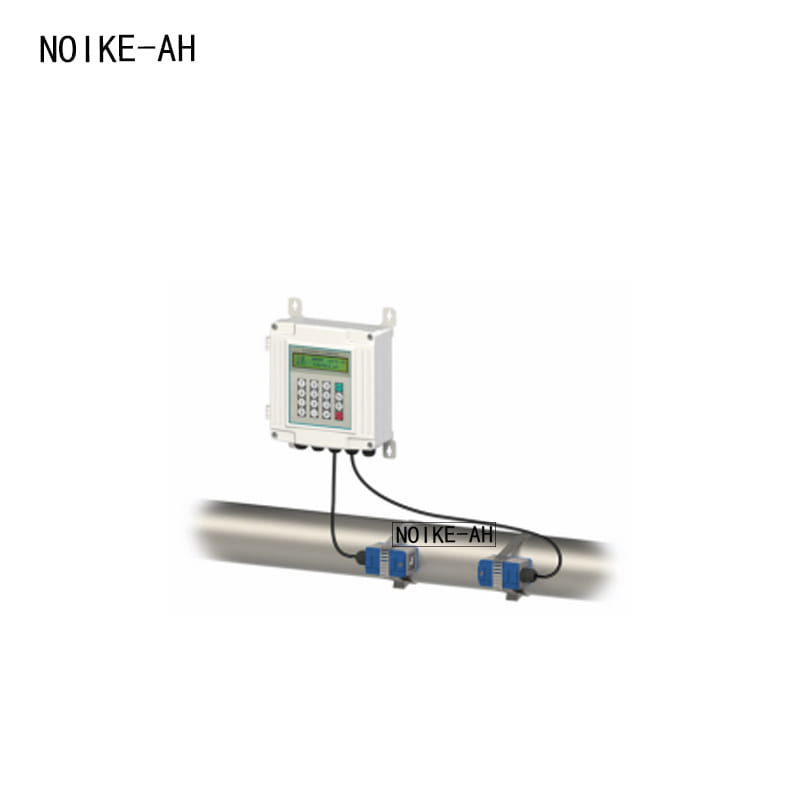

External clamp flowmeter NG800 series

Principle structure

When ultrasonic waves propagate in liquid, the ultrasonic pulses emitted by probe 1 are received by probe 2. At the same time, probe 2 also emits ultrasonic pulses, which are received by probe 1. As a result, the propagation speed of sound waves in the downstream direction increases, while in the upstream direction it decreases. The same propagation distance has different propagation times. By using the relationship between the difference in propagation time and the measured flow rate, the flow rate can be obtained.

Compared with other conventional types of flow meters or other ultrasonic flow meters, the NG800 series not only has the advantages of easy measurement and installation: the sensor can be attached to the outer wall of the pipeline to measure fluid flow, without the need for pipe breakage or diameter requirements, but also has significant features such as high precision, high reliability, and high performance.

Product Application

Widely used in power plants (nuclear power, thermal power, and hydropower), paper and pulp, food and medicine, petroleum, chemical, metallurgical, mining, flow inspection, flow tracking, and collection.

Overall dimensions

Thickness: 75mm
Wall mounted for
Wall-mounted installation
Expand with 4 pieces of Φ 6mm
Bolt fixation or
Fix with iron nails.

Thickness: 165mm
Explosion proof type is used for
Explosion proof occasions
Explosion proof grade: DIIBT5
Use 4 pieces with a diameter of 8mm
Fixed with expansion bolts.

Product Features

• 0.5% linearity, 0.2% repeatability
• Non conductive/special medium measurement
• Bilingual windowing operation in both Chinese and English
• Positive/Negative/Net Accumulator
• Anti interference design, normal operation of frequency converter environment
• 2-channel 12 bit accuracy
• Simulate 4-20mA input
• Built in daily, monthly, and annual traffic accumulator, built-in power on/off recorder, and built-in data recording
• Optional DC/AC/220V AC power supply
• Select commonly used domestic and foreign traffic units

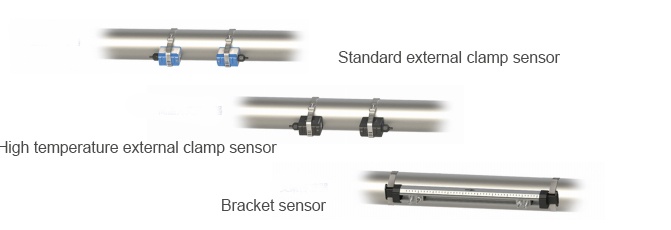

Classification of external clamp probes
