Specification
Product Overview

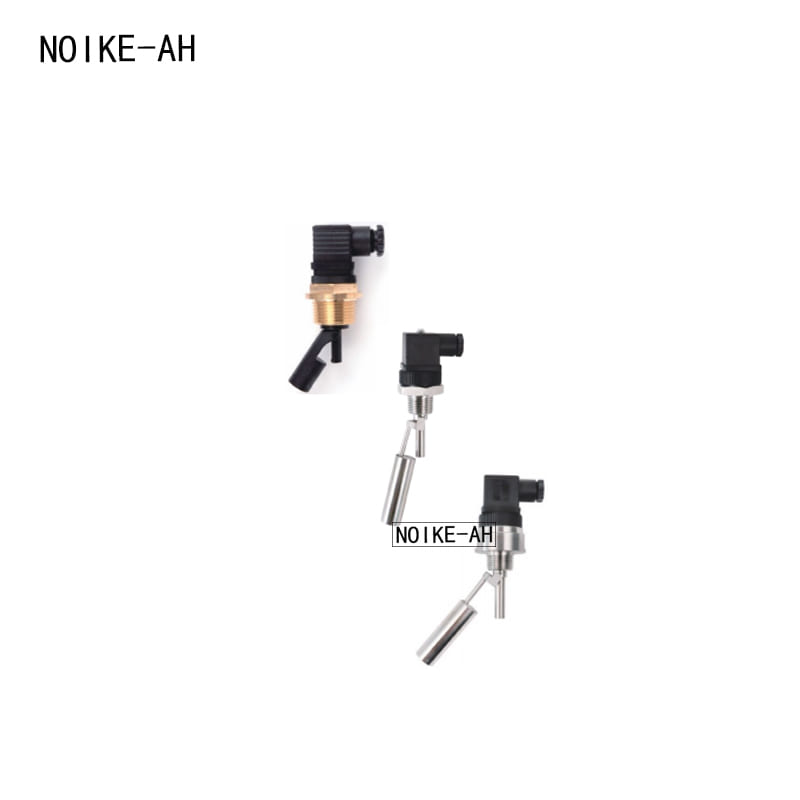

A dry reed switch is installed inside a closed non-magnetic stainless steel tube, and a circular magnetic ring is installed in the float. The float moves with the rise or fall of the liquid level, triggering or releasing the magnetic reed switch inside the stainless steel tube and sending out a switch signal. Can be installed at the top or bottom, with a compact and sturdy structure, reliable performance, good repeatability, long lifespan, and high temperature resistance.
Product Application
Used for liquid level measurement with density ≥ 0.75g/cm ³
Technical Specifications
- Maximum pressure: 5 bar
- Medium temperature: -10 ℃～ 130 ℃
- Medium density: ≥ 0.75g/cm
- Output: normally open, normally closed, normally open+normally closed optional
- Contact type: reed switch
- Contact capacity: 250VAC, 5A
- Protection level: IP65
- Wiring method: direct attachment, optional connectors
- Material: Brass/POM Engineering Plastic/Stainless Steel
Applicable Medium
Water and oil
Wiring Diagram

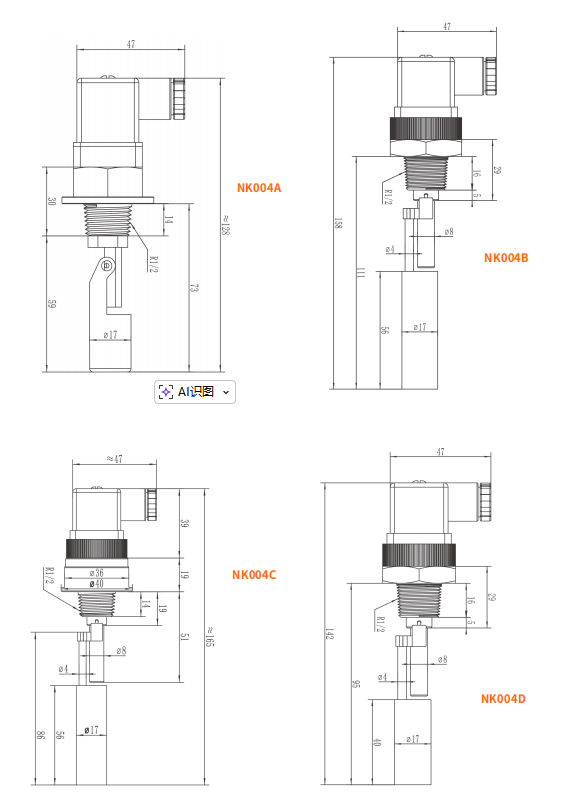

Size chart
