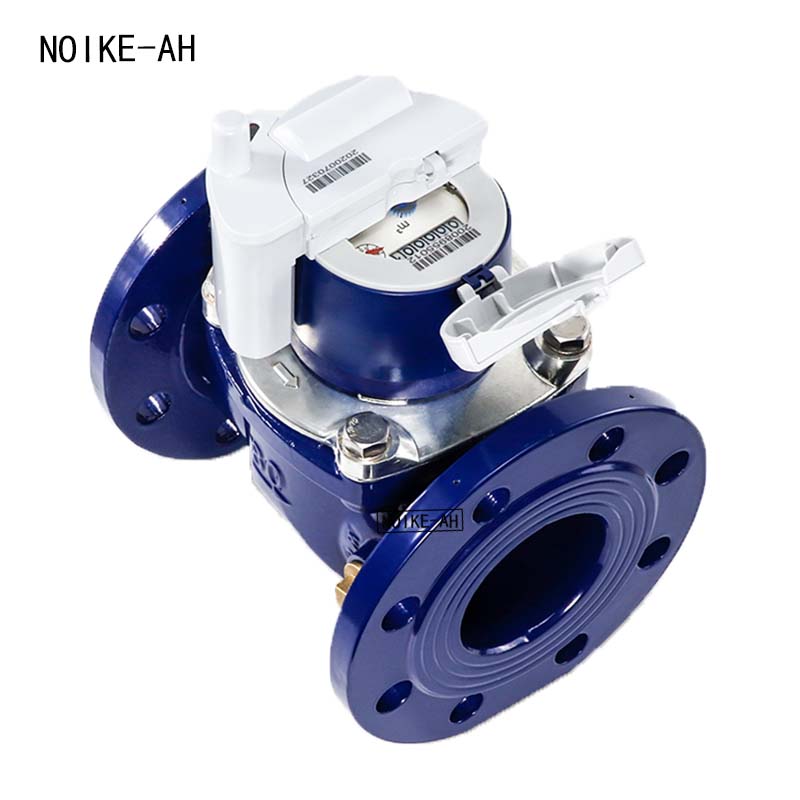

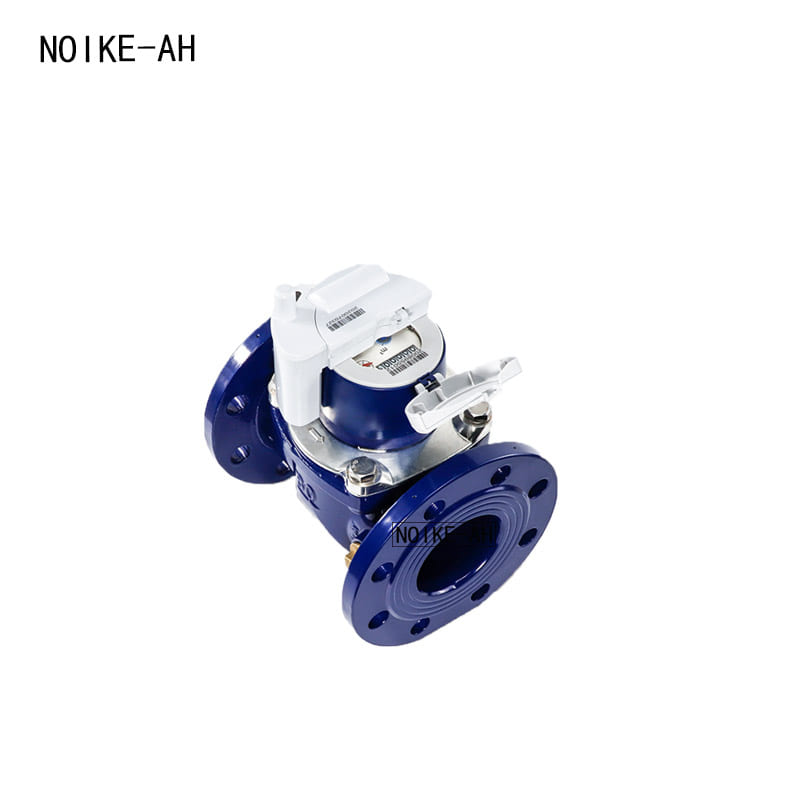

Horizontal screw-wing mechanical water meter(DN40-300)

Horizontal screw-wing mechanical water meter(DN40-300)

Performance Parameters
Temperature Class: T30
Pressure Class: MAP16
Flow Field Sensitivity Class: U0/D0
Pressure Loss Class: ▲p10; ▲p25; ▲p40
Accuracy Class: Class 2
Get An Instant Quotation Now

Specification

Product Features

SENSUS complete set of original bodySpiral wing impeller subjected to hydraulic dynamic balancing treatment (patent protection)Flow Error Adjustment Device (Patent Protection)

The counter can be rotated for easy reading.

Pressure loss is small

Detachable structure design

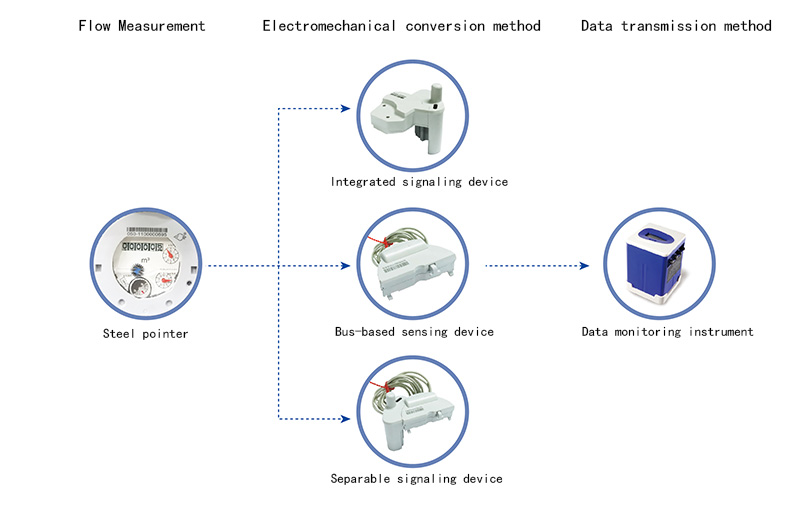

Data remote transmission

Technical parameters

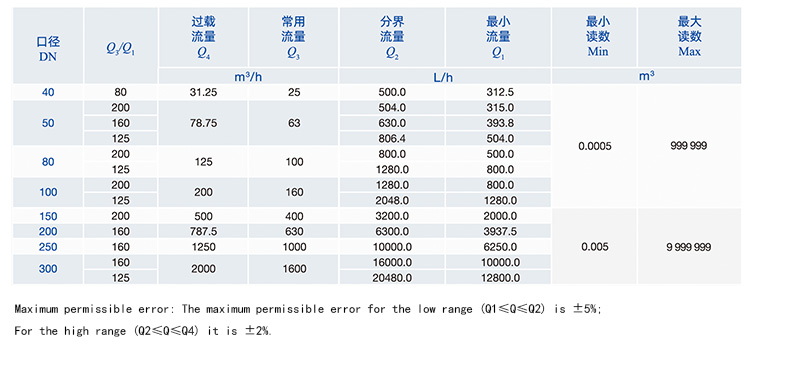

Flow parameters

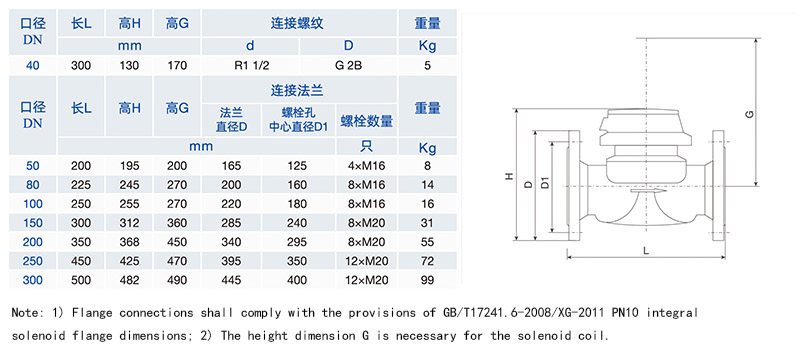

External Dimensions

Note: The external dimensions and weight are for reference only; please refer to the actual product for details.
