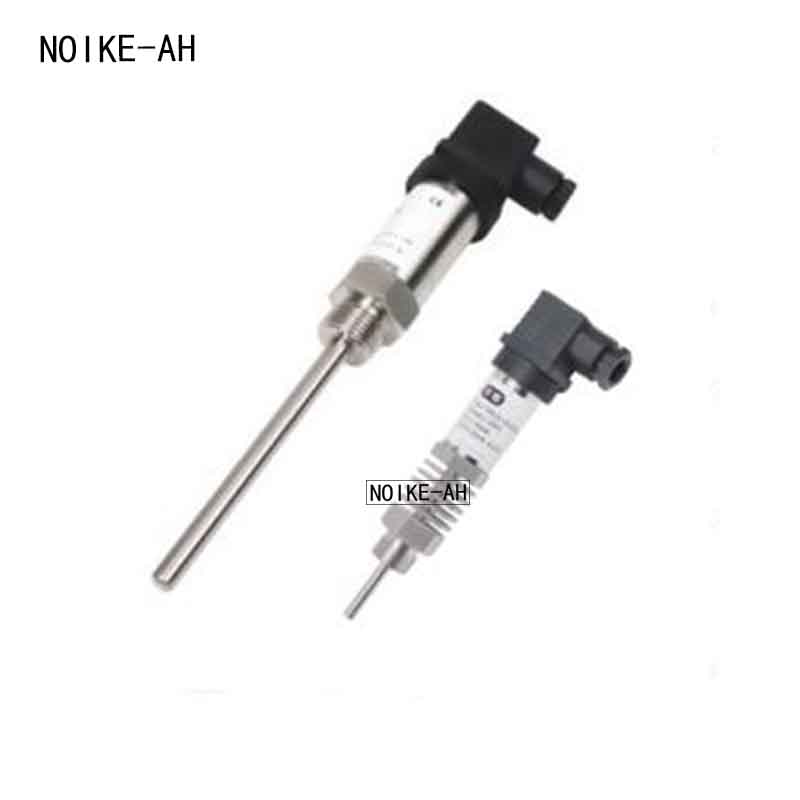

Integrated Temperature Transmitter NM110 Series

Integrated Temperature Transmitter NM110 Series

  • Brand：NOIKE-AH
  • Model：NM110
Get An Instant Quotation Now

Specification

Integrated Temperature Transmitter NM110 Series

Product Overview

The NM110 includes a PT100 probe. The resistance of the PT100 changes with temperature, and the internal circuit of the ST40 converts its value into a linear analog output. It features simple installation, multiple optional measurement ranges, various specification probes, an all-stainless steel housing, and a compact and robust structure. It can also be optionally equipped with on-site instruments and cabinet-mounted control panels.

Technical Parameters

  • Measurement range: Customizable
  • Linearity: <0.1%
  • Accuracy: ±0.2K + 0.2% of full scale
  • Resolution: 0.1K
  • Pressure resistance: φ6 type probe: 40bar; φ8 type probe: 100bar
  • Temperature influence: 0.1K/10K
  • Operating voltage: 12…30Vdc
  • Electrical protection: Reverse polarity protection, overload protection
  • Sensor: PT100
  • Ambient temperature: -25…80°C
  • Protection class: IP65
  • Housing material: Stainless steel 1.4571
  • Wetted part material: Stainless steel 1.4571
  • Electrical connection: Terminal wiring

Product Applications

It is suitable for both gas and liquid, and can be used in water supply systems, hydraulic and pneumatic systems, cooling systems, heating systems, air conditioning systems, automation projects, etc.

Wiring Diagram

4…20mA, 1…5V

Zanke NM110 Series

3

Selection Table

NM110- C2080 A 6 25 G14M Detailed Description
NM110- Integrated temperature transmitter
C2080 Measurement range: -20..8°C (user-specified range available)
C0100 Measurement range: 0…100°C (user-specified range available)
C50200 Measurement range: -50..200°C (high and low temperature type, user-specified range available)
C50400 Measurement range: -50…400°C (high and low temperature type, user-specified range available)
C100100 Measurement range: -100..100°C (high and low temperature type, user-specified range available)
C200100 Measurement range: -200..100°C (high and low temperature type, user-specified range available)
A Analog output: 4..20mA
V05 Analog output: 0..5V
V15 Analog output: 1..5V
V010 Analog output: 0..10V
V110 Analog output: 1…10V
/6 Probe diameter: φ6
/8 Probe diameter: φ8
/25 Probe length L: 25mm
/50 Probe length L: 50mm
/75 Probe length L: 75mm
/100 Probe length L: 100mm
G14M Threaded interface: G1/4 external thread
G12M Threaded interface: G1/2 external thread
H50 Sanitary clamp: 50.5
