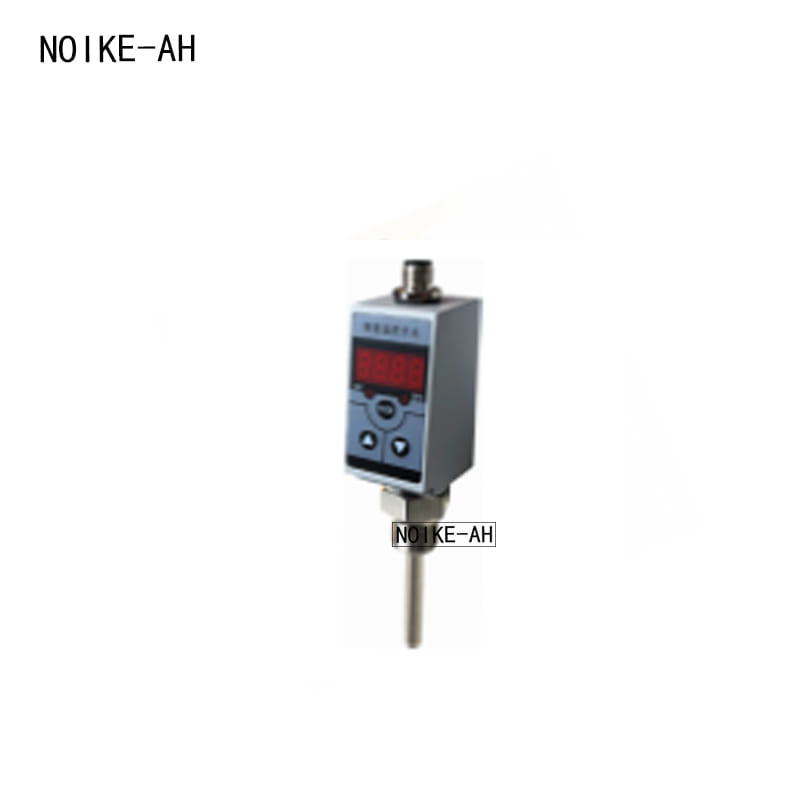

Intelligent temperature controller NC50 series

Product Overview

The NC50 intelligent temperature controller is an intelligent digital temperature measurement and control product that integrates temperature measurement, display, output, and control. This product is entirely electronic in structure, with a temperature sensor at the front end.

The output signal is converted into a digital signal that can be processed by a microprocessor using a high-precision A/D converter, and can output two switch signals. This intelligent digital temperature controller is flexible to use, easy to operate, easy to debug, and safe and reliable.

Product Application

Widely used in industries such as hydropower, tap water, petroleum, chemical, and machinery to measure and control the temperature of media.

Product Features

Four LED displays the current temperature without any indication error; The shell is equipped with node action light-emitting diodes for easy observation; The on-site setting of two control points can set high and low temperature alarm points, which is easy to operate and flexible to use; Two way switch output, strong load capacity (1.2A);

The delay switching output time can be set by oneself, using high-precision temperature sensors, which have higher accuracy than mechanical temperature switches, smaller delay, faster response, stable and reliable; Adopting high-precision AD and high-precision microprocessor, fully digital design; Adjust without dead zone, and set the operating temperature point arbitrarily within the entire range.

Technical Specifications

• Control range: -50~150 ℃
• Control accuracy: 0.2%, 0.5%
• Stability: ≤± 0.2%/year
• Display accuracy: ± 0.1% FS
• Display mode: 4-digit digital tube+2 LED lights
• Display range: -1999~9999
• Power supply impact: ≤± 0.1% FS
• Maximum power consumption:<1W
• Lead method: M12 industrial connector
• Output mode: Two switch signals+one analog signal (optional)
• Load capacity:<24V1.2A
• Output method: PNP
• Switch lifespan:>1 million cycles
• Environmental temperature: -20 ℃~70 ℃
• Medium temperature: -50 ℃~150 ℃
• Storage temperature: 40 ℃~120 ℃
• Relative humidity: ≤ 80%
• Installation thread: optional

Size Chart
