Specification
Product Description:

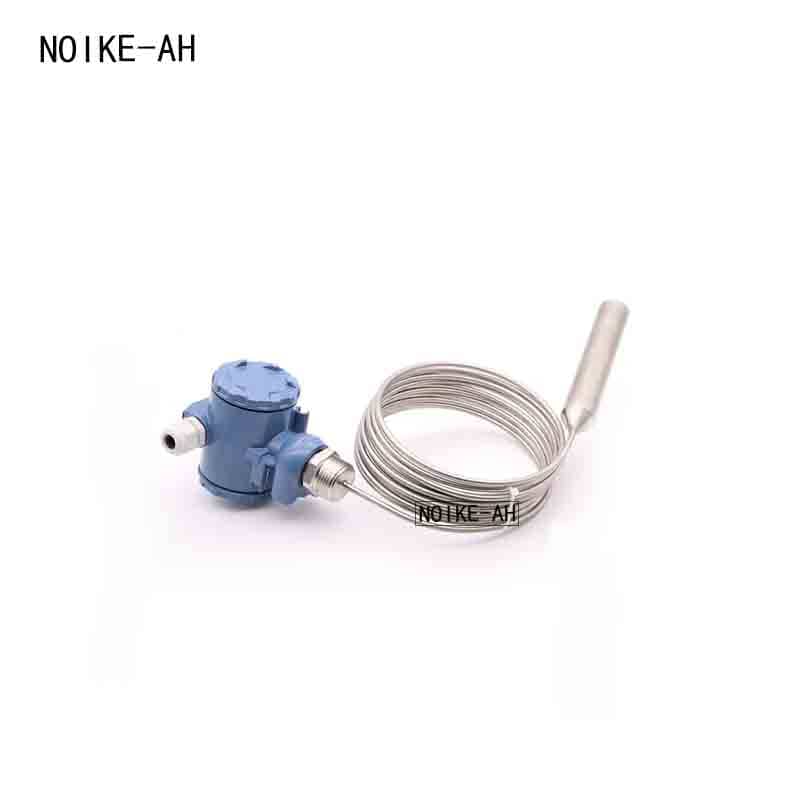

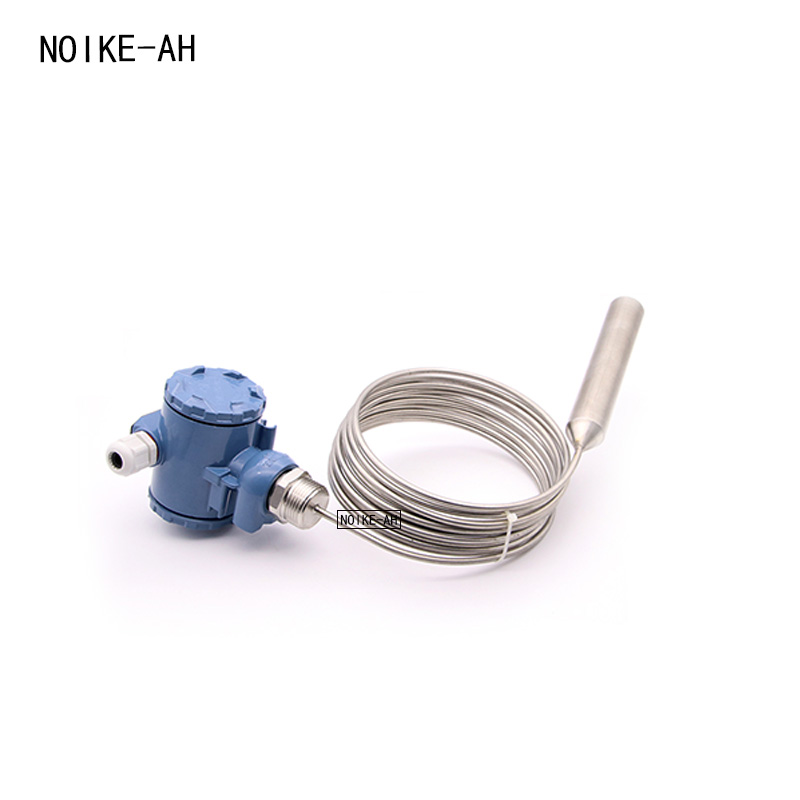

The LK-136P level transmitter employs high-stability imported sensor chips and precision intelligent transmitter circuitry, utilizing digital signal processing and nonlinear compensation technologies to deliver accurate liquid level measurement. Its hermetically sealed design with waterproof vented cables allows for prolonged submersion in liquids.
Key Features:
Measurement Technology:
- Laser-trimmed sensor compensation for zero/temperature drift
- Reverse polarity and overcurrent protection
- Lightning/impact resistance
- Structural Design:Compact two-wire construction
- 304/316 stainless steel housing (IP67)
- Integrated cable gland for pressure equalization
Technical Parameters:
Category Specification
- Measurement Range 0-1m to 0-200m (customizable)
- Accuracy ±0.2%FS / ±0.5%FS
- Long-term Stability ≤0.2%FS/year
- Operating Temperature -20°C to +85°C
- Output Signals 4-20mA/0-10V/RS485/HART
- Power Supply 12-30VDC (24VDC recommended)
- Overload Capacity 150% of rated range
Applications:
Petroleum/chemical storage tanks
Power plant water systems
Municipal water/wastewater treatment
Hydrological monitoring
Installation Notes:
Suitable for direct immersion in liquids with density ≥0.45g/cm³
Requires avoidance of strong electromagnetic interference
Note:
This content is for reference only. For detailed inquiries, please contact our technical staff.
