Specification
Product Overview

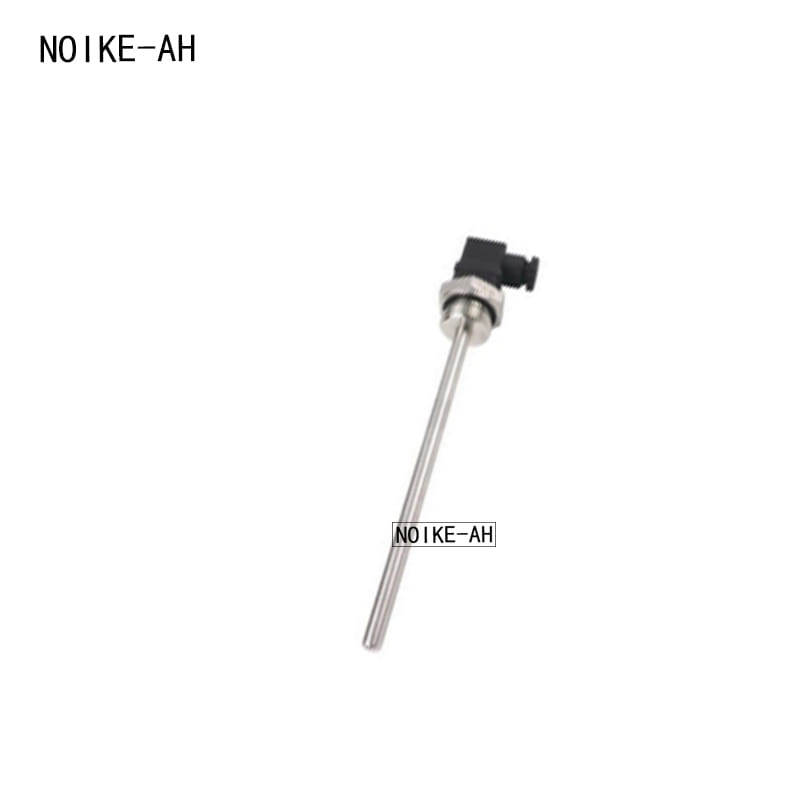

The NC130 series adopts the principle of bimetallic strips. When the temperature reaches the set value, a section of bimetallic strip wrapped in a circular curved shape is heated and expanded to trigger the built-in device, and the switch is activated. The contact part between TC130 and the medium is made of stainless steel material, and there are three types of interface threads available: G1/4, G3/8, and M22x1.5. The temperature range is from 30 ℃ to 120 ℃.
Product Application
The NC130 series temperature switch can meet different requirements for temperature control in hydraulic, lubrication, and transmission series, and is used to detect whether the temperature exceeds the maximum or minimum limit.
Technical Specifications
- Measurement range: Fixed switch point at 30 ℃ 120 ℃ (see table below for details)
- Maximum pressure: 100bar
- Medium temperature: maximum 130 ℃
- Output: normally open/normally closed optional silver plated contacts
- Contact capacity: Capacity 16A-220VAC
- Fixed hysteresis: maximum 15 ℃ (>80 ℃)
- Protection level: IP65
- Wiring method: Terminal wiring
- Liquid contact material: stainless steel
- Shell material: Black NBR

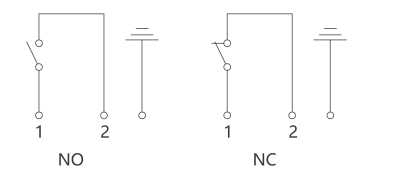

Wiring diagram

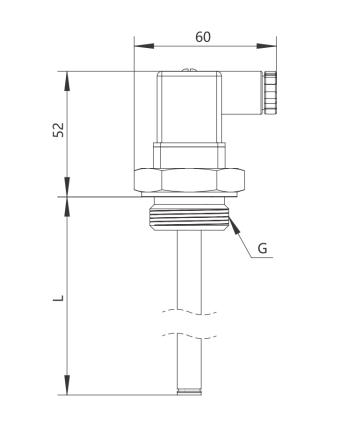

Dimensional drawing (mm)
