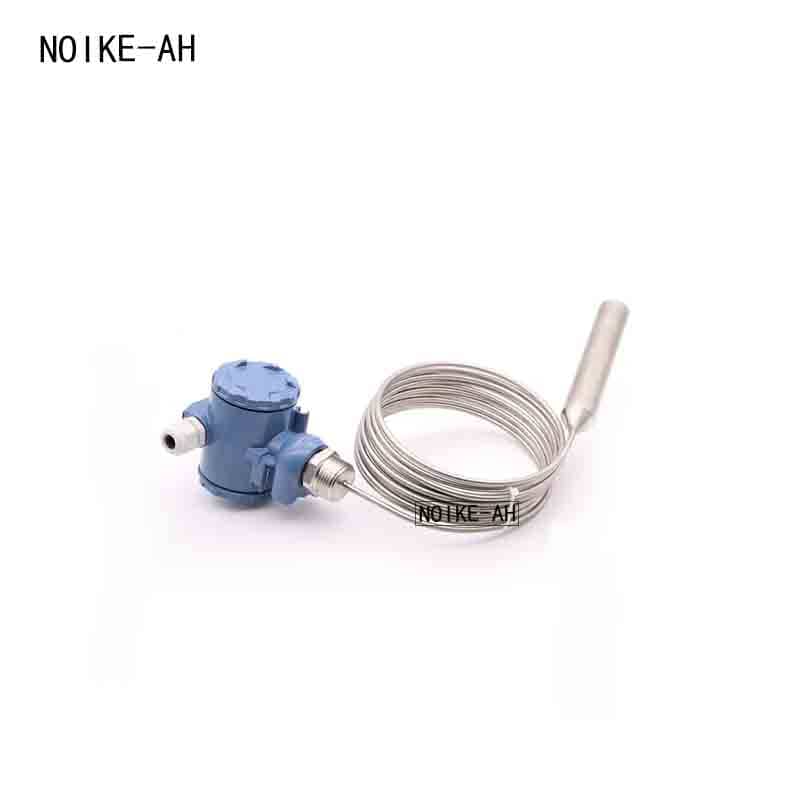

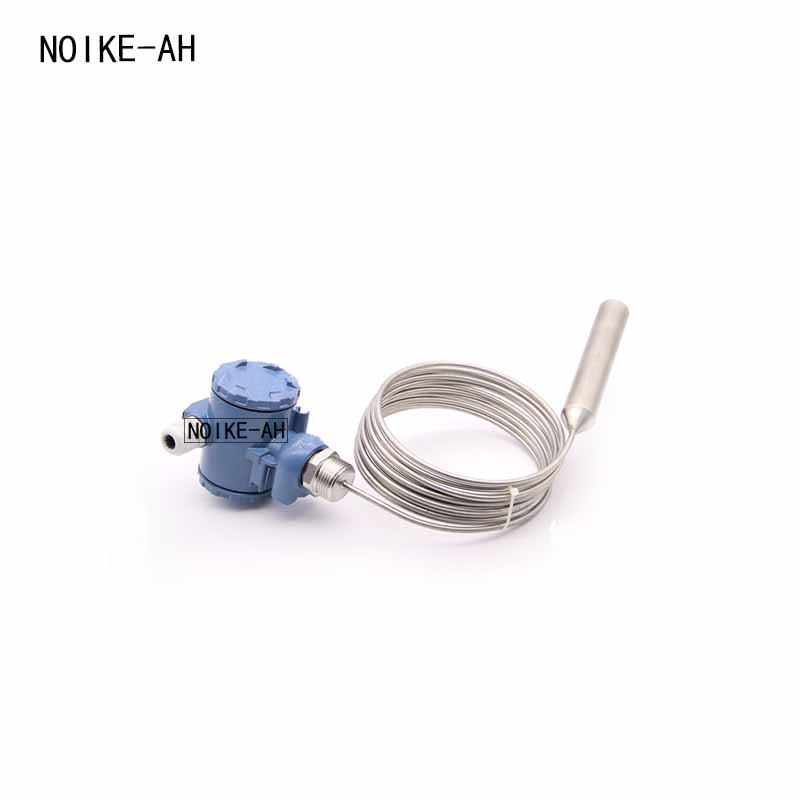

ND101 Submersible Level Transmitter

Product Description

The ND-101 liquid level transmitter utilizes high-stability, high-reliability imported sensor chips and high-precision intelligent transmitter processing circuits. It adopts precision digital circuit technology and nonlinear correction technology, making it a high-precision liquid level measurement product. The waterproof and gas-conducting electric fence is connected to the surgical seal, with the vent tube inside the electric fence, allowing it to be used in liquid for long periods. The integrated structure and standardized output signal provide convenience for on-site use and automatic control. The product operates in a two-wire system, featuring a compact size, light weight, easy installation, and convenient use. It is suitable for liquid level measurement and control in the fields of petroleum, chemical industry, power plant, urban water supply, and hydrological exploration.

Key Features

• Integrated structure, wide measurement range;
• The output signal comes in various forms;
• Laser trimming compensation for zero point and temperature performance of imported sensor chips;
• Multiple protections, including reverse polarity protection and current limiting protection; resistant to lightning strikes and shocks.

Technical Parameters

• Measuring range: 0~1m…200m
• Allowable overload: 1.5 times of 20% of the standard
• Accuracy level: ±0.2%, ±0.5%
• Long-term stability: ≤0.2%FS/year
• Operating temperature: -20℃～85℃
• Storage temperature: -20℃~100℃
• Power supply: 12~30VDC (recommended 24VDC)
• Output: 4~20mADC, 0~10/20mADC, 0/1~5/10VDC, RS485,HART
• Load resistance: ≤ (U-12)/0.02Ω
• Relative humidity: 95% non-condensing
• Shell: Cast aluminum, wetted material 304SS
• Protection level: IP68

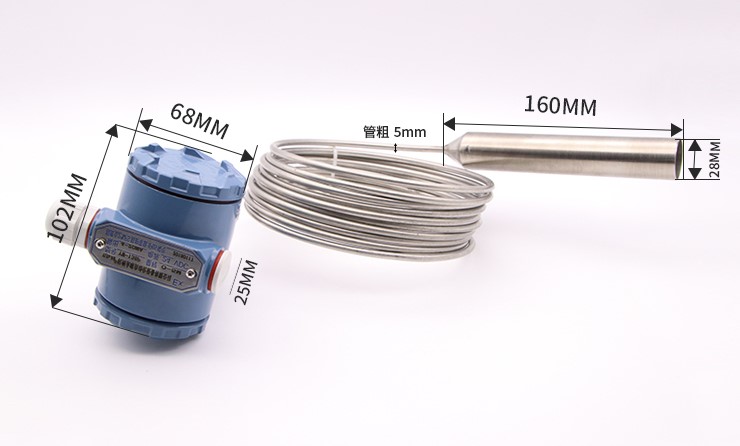

Overall dimensions

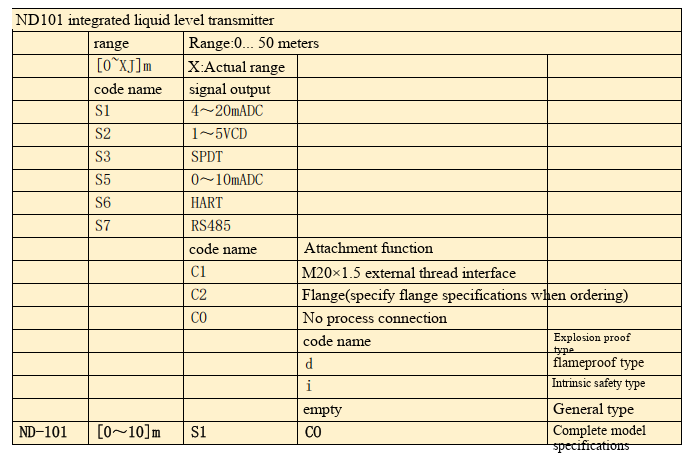

Selection Guide

Applications

Petroleum/chemical storage tanks

Power plant water systems

Municipal water/wastewater treatment

Hydrological monitoring

Installation Notes

Suitable for direct immersion in liquids with density ≥0.45g/cm³

Requires avoidance of strong electromagnetic interference
