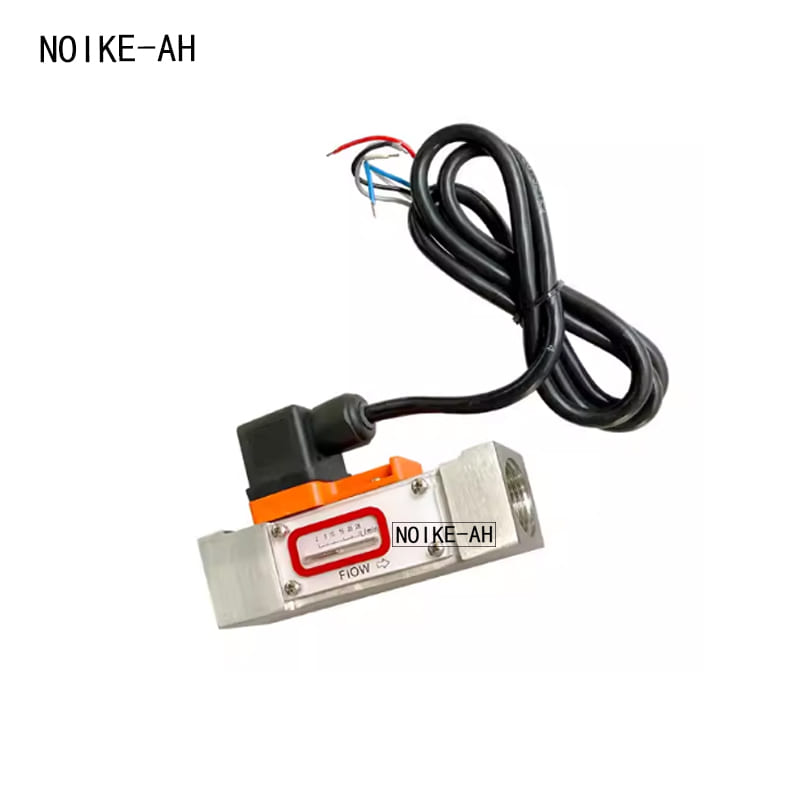

Piston/mechanical flow controller water liquid gas flowmeter NK-800

Applicable occasions

It is mainly suitable for flow control of gases and liquids in small-diameter pipelines and cannot be used for high-temperature media.

Working Principle

The fluid channel inside the flow switch housing is equipped with a piston containing a permanent magnet. The pressure caused by the flow of fluid on the pistonWhen pushed, the magnetic piston will drive the sealing magnetic inside the equipment to perform switching actions. The diameter of the piston determines the starting flow rate.

When the liquid flow decreases, the stainless steel spring will push the piston to reset. After the reed switch is activated, it can remotely transmit an alarm or indication. Used for liquid or gas media. Durable plastic, aluminum or stainless steel casing is optional.

Online installation, mechanical flow switch, used for liquid or gas media. Durable plastic, aluminum or stainless steel casing is optional.

Low pressure loss, good repeatability, anti pollution ability, complete isolation between mechanical and electronic parts, suitable for low flow economy. Three times the piston stroke of the original NK-HS200 makes the setting accuracy more precise. Equipped with a switch setting scale, users do not need to set it on site. LED displays the switch status, and dual switch output is available for selection.

Gas liquid dual-use type, industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning.

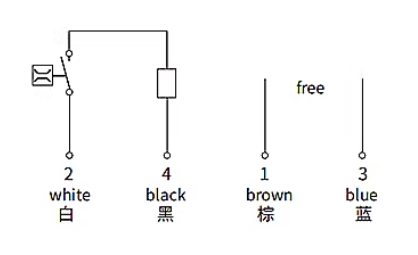

Wiring diagram

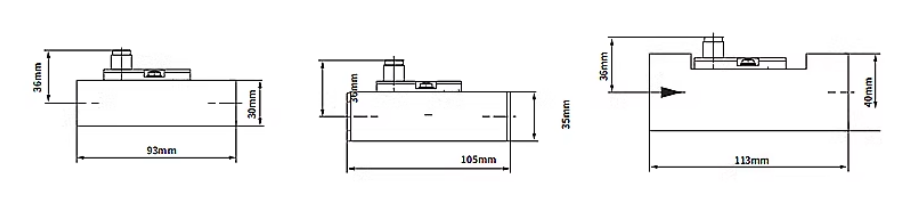

Size chart
