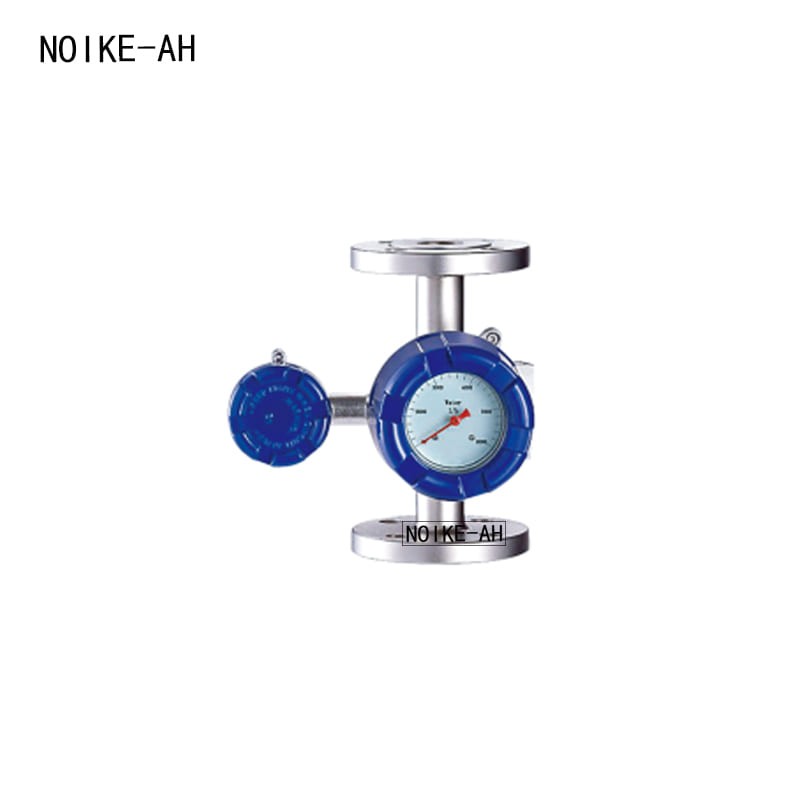

Pointer-type flow switch NKFS series

Product Overview

The NKFS series flow switch is primarily used for liquid flow monitoring and switch output in pipelines. With its robust structure and stable performance, it can be widely applied in the cooling and lubrication systems of compressors, motors, generators, rolling mills, conveyors, and other machines. When the flow rate exceeds or falls below the preset switch point, it can output a switch control signal. This preset switch point can be set at any position within the measurement range, and it can be easily adjusted without interrupting the flow under installation conditions.
The measurement principle of the NKFS series flow switch involves the use of a conical measuring tube and a measuring target. When fluid flows through the conical tube, the measuring target displaces according to the flow rate. The displacement of the measuring target is balanced by the elastic-storage equilibrium force and transmitted to the indicating system through a magnetic coupling system, thus achieving flow monitoring and control.

Product Features

• Streamlined structural design, sturdy and durable
• Magnetic coupling measurement system.0
• The installation direction is arbitrary, allowing for vertical or horizontal installation
• Selection of various materials
• Wide measurement range
• Clear flow display scale, easy to read, rotating pointer, and graduated scale

Technical Specifications

• Diameter: DN15~DN250
• Repeatability: ±2.5%
• Accuracy: 12%
• Pressure rating: 0.6-4.0 mbar (high pressure optional)
• Temperature: Standard type 85℃; High temperature type 300℃
• Signal output: Alarm point output can be used with transistor relays (intrinsically safe type)

Indicator type

NKFS-1~3 flow switches can be composed of Type I or Type II indicators; corresponding to the measurement range in l/h,Circular dials and pointers with scales such as l/min and m3/h allow for convenient observation of flow rates; meanwhile, this type of flow The flow switch can also conveniently adjust the alarm point of the switch without interrupting the flow in the pipeline.
The basic model of the LYFS-4 flow switch consists of a Type II indicator; it corresponds to the degree of 1/10 scale division of the measurement range The panel can simply observe the flow; meanwhile, this type of flow switch can easily adjust the switch alarm point There is no need to interrupt the flow in the pipeline.

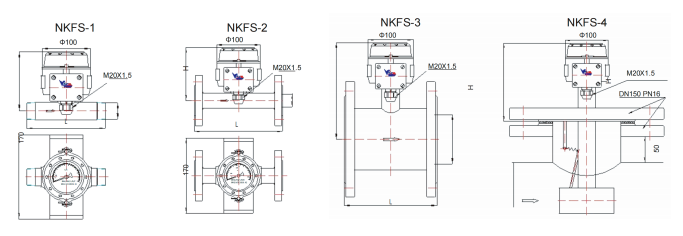

Product dimensions

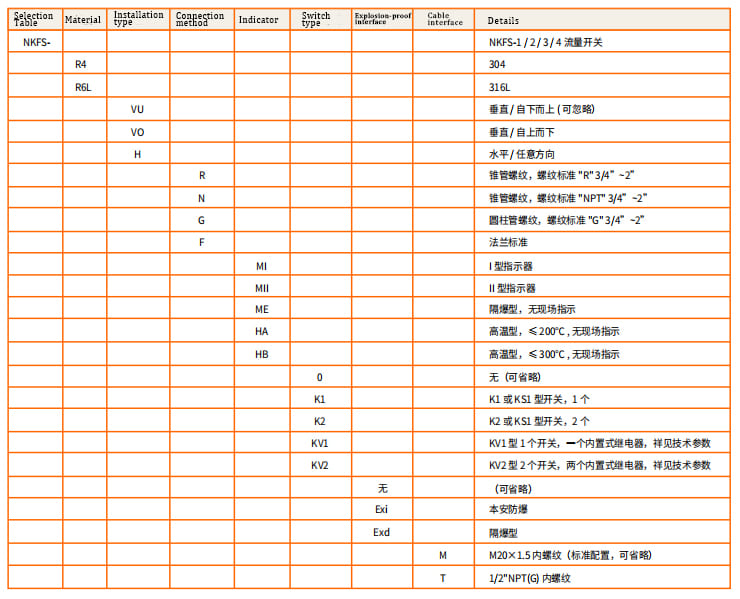

Selection Table

1/ For other communication devices, please consult with an engineer for explosion-proof requirements, high temperature requirements, and material corrosion resistance requirements before ordering.
2. Customization is also available for those with special requirements in terms of form, pressure resistance, and protection level.
