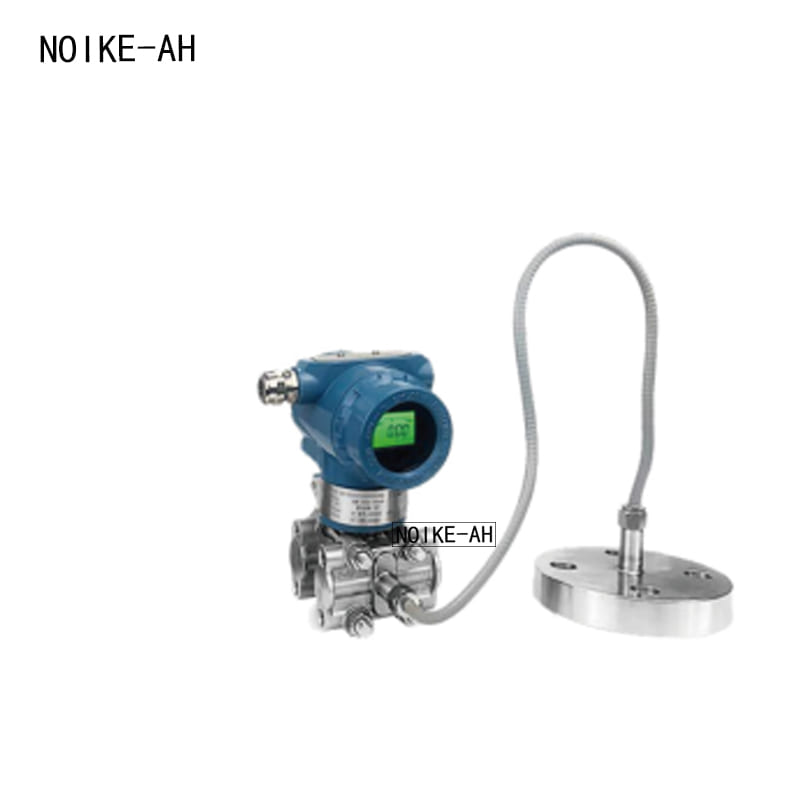

Pressure (liquid level) transmitter NT52C series

Product Overview

When the NT52C series pressure (liquid level) transmitter operates with a capacitive pressure core, the isolation diaphragms and filling fluid on the high and low pressure sides transmit the process pressure to the filling fluid, which then transmits the pressure to the sensing diaphragm at the center of the sensor. The sensing diaphragm is a tensioned elastic element whose displacement varies with the applied pressure (for gauge pressure transmitters, atmospheric pressure is applied to the low-pressure side of the sensing diaphragm).

The absolute pressure transmitter maintains a reference pressure on the low pressure side at all times. The maximum displacement of the sensing diaphragm is 0.1 millimeters, and the displacement is proportional to the pressure. The position of the sensing membrane is detected by the capacitive plates on both sides. The difference in capacitance between the sensing membrane and the capacitor plate is converted into the corresponding current or digital HART output signal.

Product Application

Mainly used for measuring liquids and gases such as food, chemical, papermaking, medicine, etc., which require high hygiene and cleanliness, high temperature resistance, high viscosity media, and occasions with corrosion resistance requirements

Technical Specifications

• Measurement range: 0… 5000KPa, customizable
• Display unit: LCD screen
• Supply voltage: 12… 36VDC
• Output signal: 4… 20mA, HART
• Measurement accuracy: 0.5,0.2% F.S
• Repeatability: ≤ 0.1% of full scale
• Measurement hysteresis: ≤± 0.01% of full scale
• Stability:<0.01%/year
• Medium temperature: -30.. 300 ℃
• Environmental temperature: -30… 85 ℃
• Electrical connections: fasteners M20*1.5、NPT1/2
• Protection level: IP65
• Explosion proof mark: explosion-proof ExdIICT6, intrinsic safety Exia IICT6

Product Features

• Stainless steel and Hastelloy CR process isolation membrane
• Single isolation membrane design
• Stable performance, high precision, and high temperature resistance
• Multiple optional filling fluids to meet the requirements of different occasions
• Range and zero point are continuously adjustable externally
• Adjustable damping and high pressure resistance

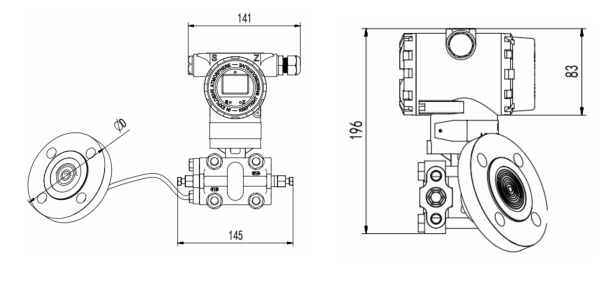

Dimensional drawing (mm)
