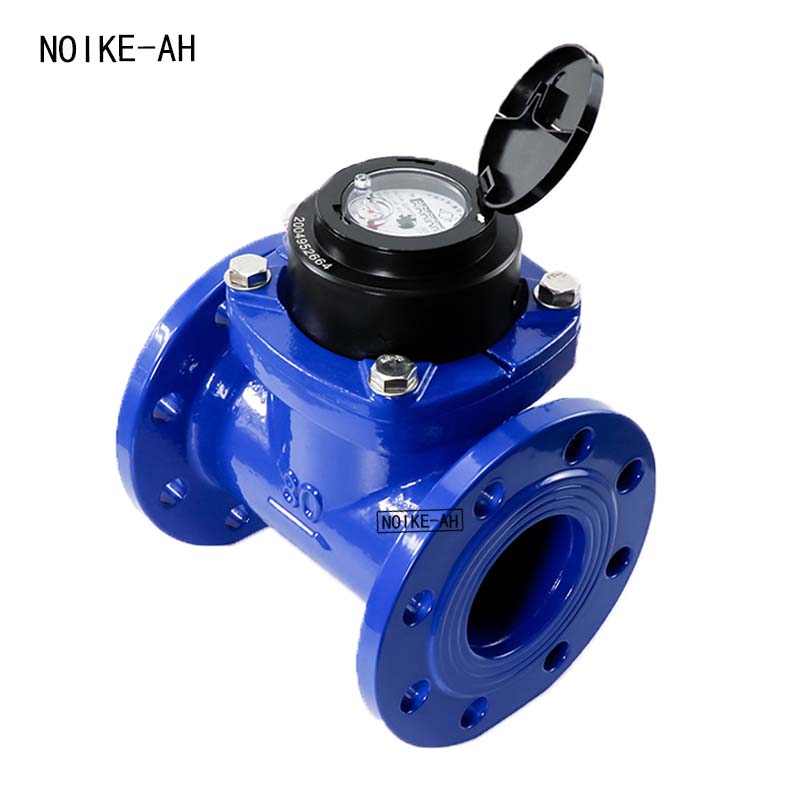

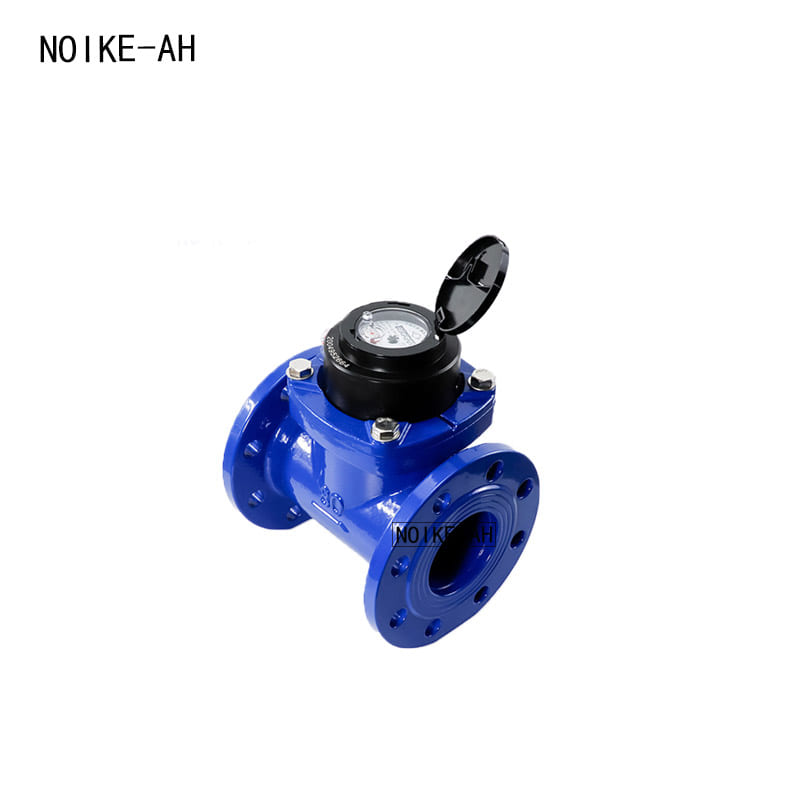

Removable horizontal wing type water meter(DN50-500)
Performance Parameters
Temperature Class: T30
Pressure Class: MAP16
Flow Field Sensitivity Class: U0/D0
Pressure Loss Class: ▲p10; ▲p25; ▲p40
Accuracy Class: Class 2
Specification
Technical parameters

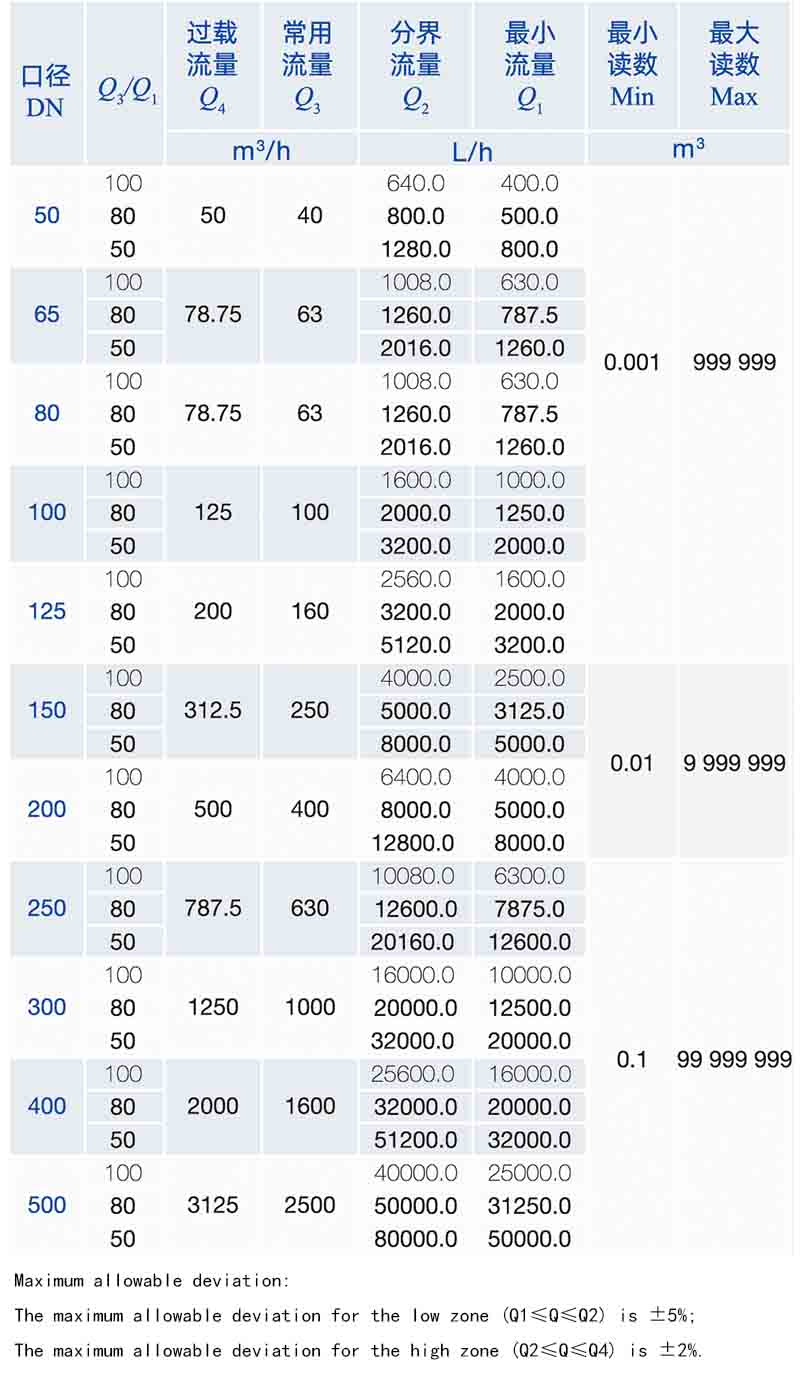

Flow parameters

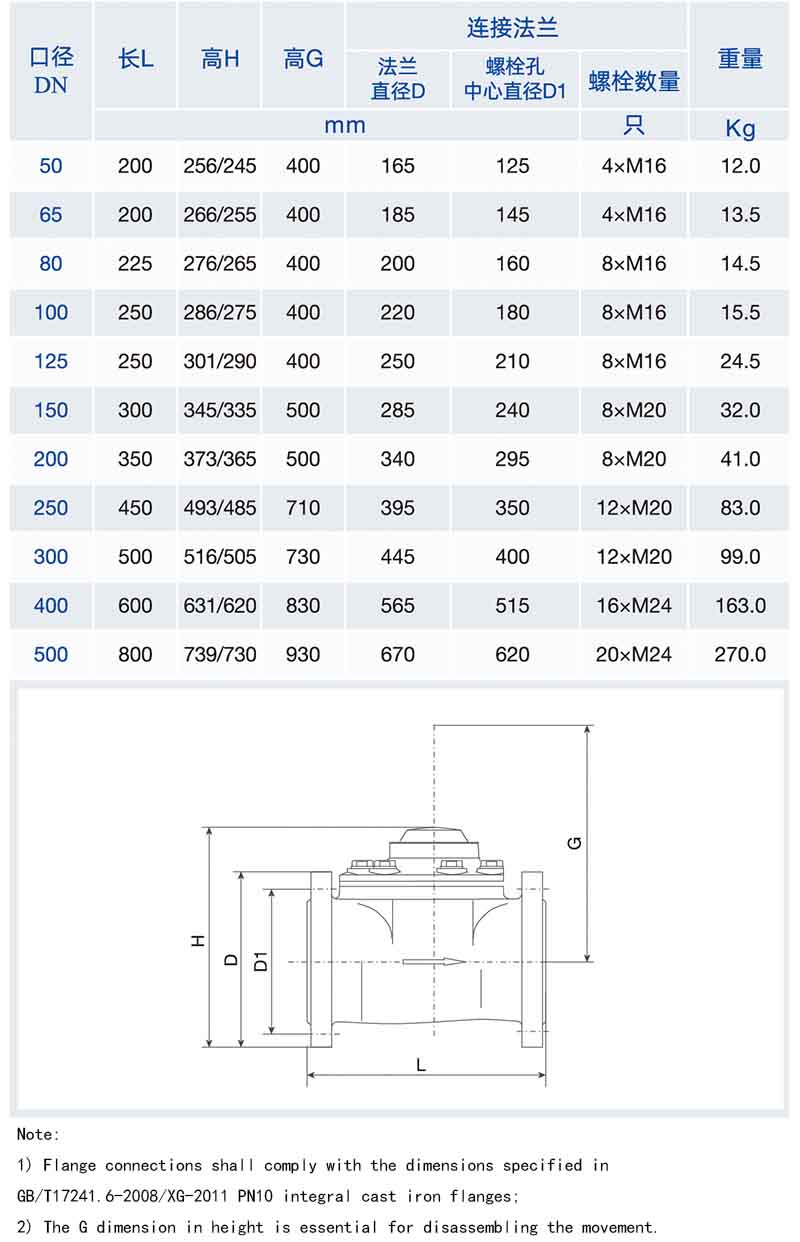

External dimensions
Note: The external dimensions and weight are for reference only, subject to the actual product.
Product features
Detachable structure design
Good versatility
Pressure loss is small
Reserved for remote transmission

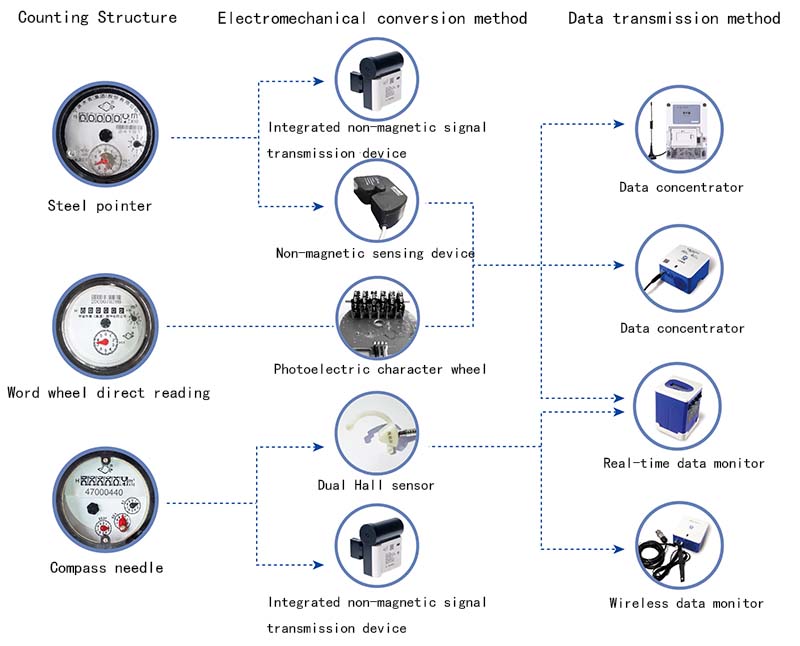

Data remote transmission
