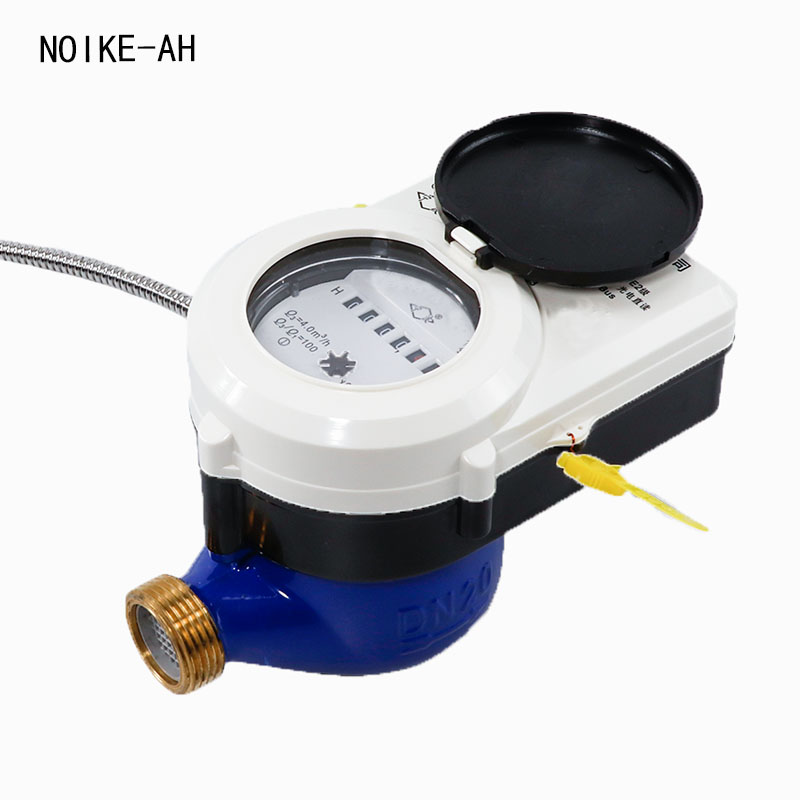

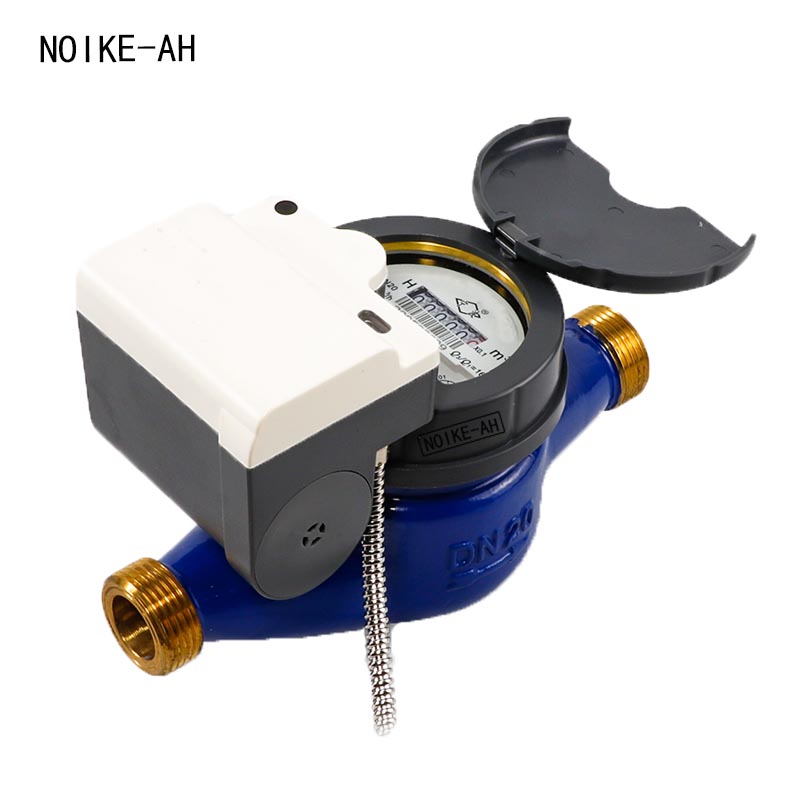

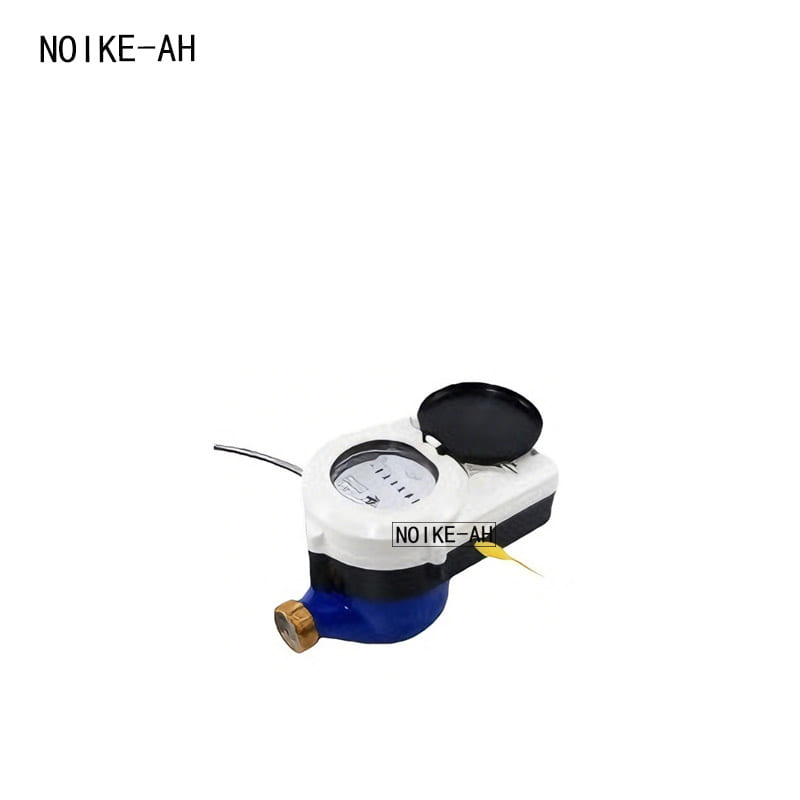

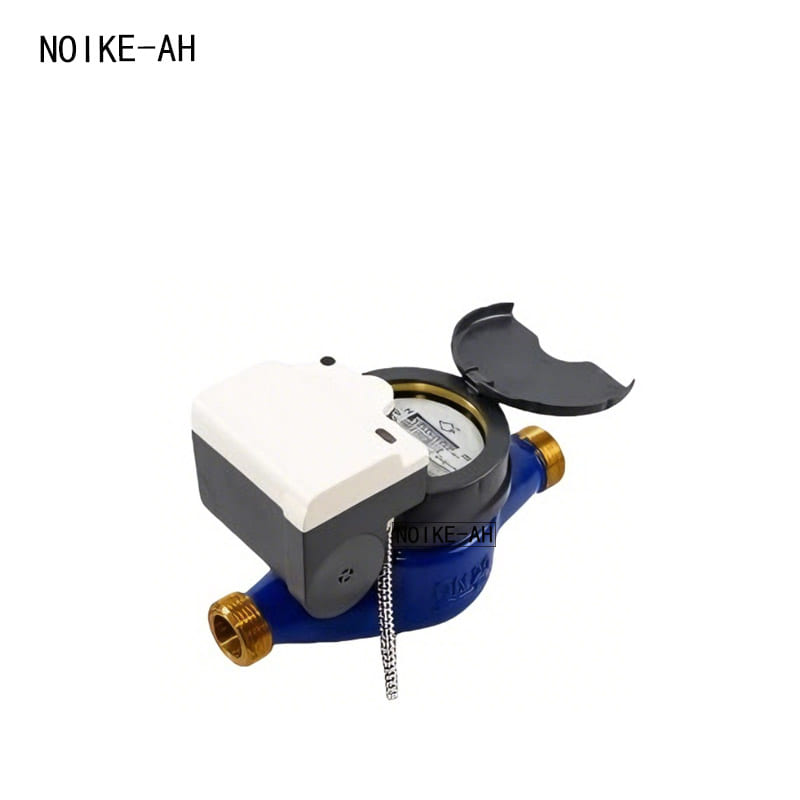

Rotor liquid seal remote transmission cold water meter – small caliber intelligent water meter

Centralized water metering solution features

High measurement accuracy,The resolution can reach 1L;
Strong anti-interference capability, Stable signal;
Suitable for high-density building water metering
Suitable for measuring water meters and wells in the northern market

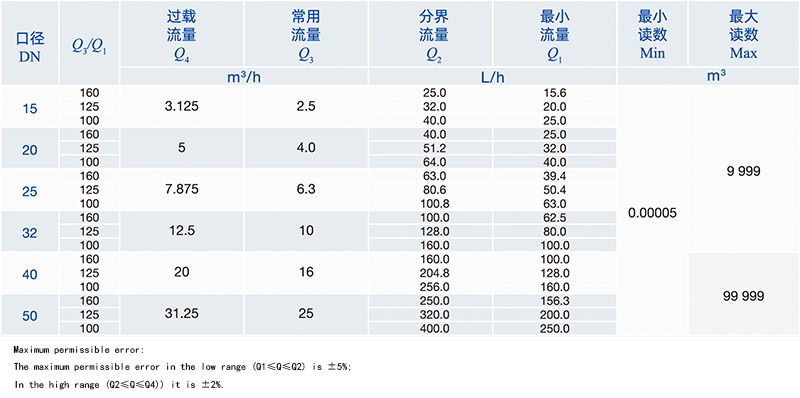

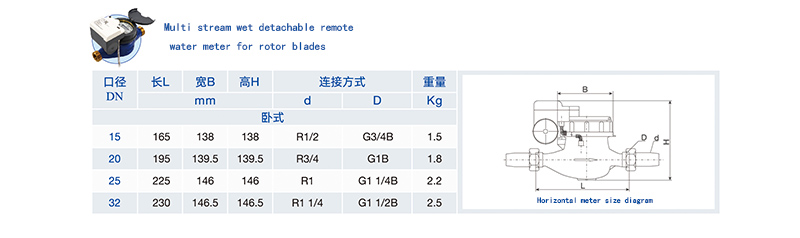

Specification

Water metering section (base meter)

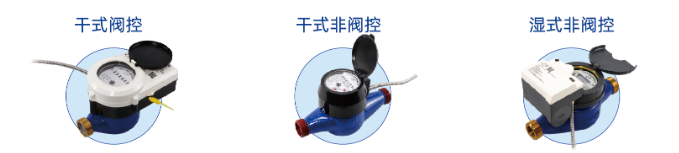

The base part is based on the original material and surface of the instrumentBased on the selection of cover and installation methods, provideDry valve control, dry non valve control, wet valve controlChoose between three or two types of non valve instruments.

Electromechanical conversion section

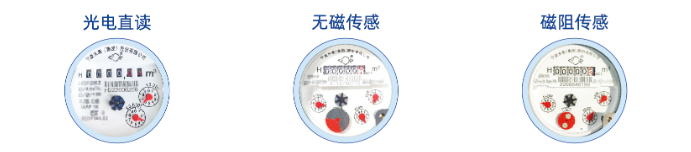

Offers various electromechanical conversion methods such as photoelectric direct reading, non-magnetic pulse, and magnetoresistive sensing to meet different needs.

Data remote transmission part

Default M-Bus communication mode, with RS-485 as an optional alternative. Additionally, depending on the number of meters, two types of concentrator devices are available: battery-powered concentrators and mains-powered concentrators.
