Specification
Product Overview

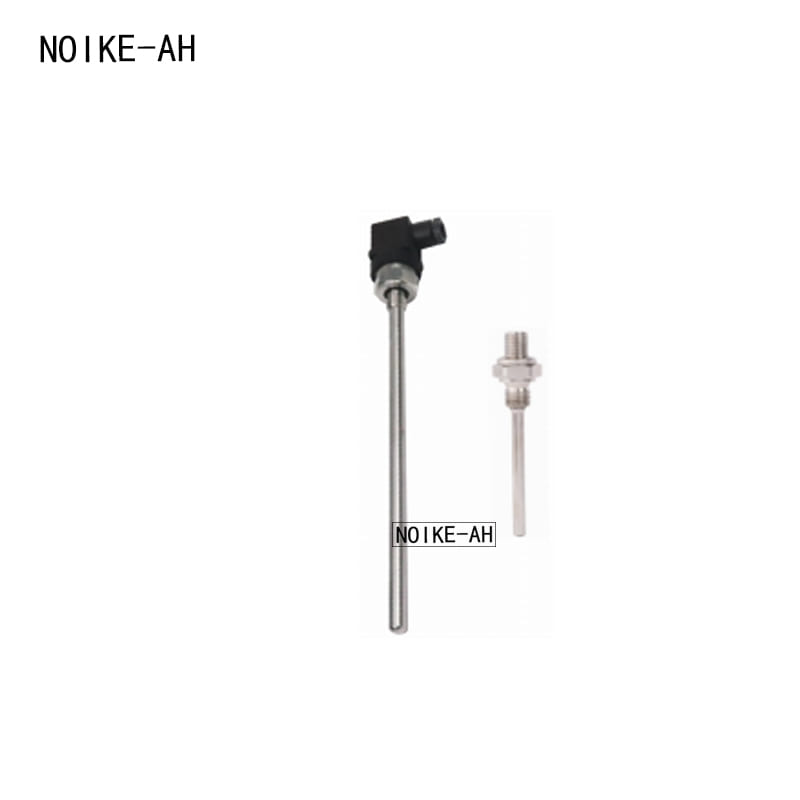

The NC100 series includes a PT100 probe, whose resistance varies with temperature. There are several specifications available for PT100, including two-wire, three wire, and four wire. Easy installation, multiple ranges to choose from, multiple specifications of probes to choose from, all stainless steel casing, compact and sturdy structure. And optional cabinet mounted control table.
Technical Specifications
- Measurement range: PT100
- Accuracy level: Class A
- Allowable error: ± 0.15+0.002xt
- Pressure resistance: 40 bar for the Ø 6 probe and 100 bar for the Ø 8 probe
- Shell material: stainless steel
- Liquid contact material: Stainless steel 1.4571
- Electrical Connection: Terminal Wiring
- Wiring method: Terminal wiring
- Protection level: IP65
Product Application
The NC100 system temperature switch can meet different temperature control requirements in hydraulic, lubrication, and traditional systems, and is used to detect whether the temperature exceeds the maximum or minimum limit.

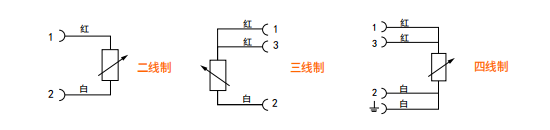

Wiring diagram
Dimensional drawing (mm)
