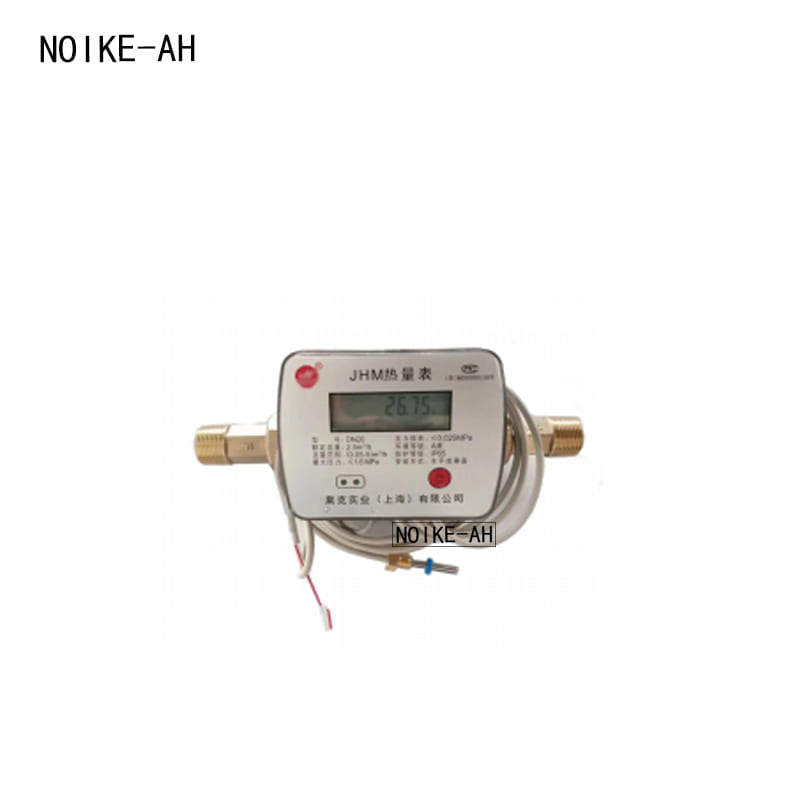

Ultrasonic heat meter NKBJ2

Principle structure

Ultrasonic cold and heat meters are intelligent heat measuring devices that achieve precise measurement of cold and heat. This product has the characteristics of beautiful appearance, easy installation, accurate measurement, and stable operation. Fully comply with CJ128-2007 standard and JJG225-2001 national standard verification regulations. Ultrasonic heat and cold meters are used to measure the heat released or absorbed by heat exchange systems using water as a medium. They can be used for both heating supply systems and air conditioning refrigeration systems.

The product mainly consists of a paired temperature sensor (measuring the temperature of the inlet and outlet water), a flow sensor (measuring the volume of hot water passing through the pipeline), and a calculation part (calculating the cold and heat used and displaying them).

Product Application

Applied to heating facilities such as centralized heating, central air conditioning, and combined cold and hot supply that charge for heat metering.

Product Features

• Transducer: As the main signal generating component in ultrasonic heat meters, imported piezoelectric ceramic plates are used, which have stable performance and good consistency, ensuring high-precision measurement of ultrasonic heat meters.
• Temperature sensor: using PT1000 high-precision platinum resistance and equipped with precision measurement circuit to ensure high-precision temperature measurement.
• Self diagnostic function: During stable operation of the ultrasonic calorimeter, if there is abnormal communication, insufficient battery, or human damage, the system will display the corresponding code and automatically save the data,Wait for the fault to be resolved before restoring.
• Remote transmission and centralized control function: Equipped with M-BUS and 485 interfaces, it can achieve data remote transmission and centralized control; Beautiful appearance, can be hung in any direction, convenient for reading, and easy to operate.Easy to install, with functions such as dust, moisture, water, disassembly, and human damage prevention.

Technical Parameters

• Water/Homogeneous Liquid‌
• Accuracy Class‌: Class 2/Class 3
• Range Ratio‌: Qp/Qi=50
• Pressure Loss‌: Less than 0.015 Mpa
• Nominal Pressure‌: 1.6 Mpa
• Temperature Sensor‌: PT1000 platinum resistance (straight insertion type)
• Temperature Measurement Range‌: 1~105℃
• Temperature Difference Range‌: 3k-75K (heat meter) / 2k-75k (cold meter)
• Temperature Resolution‌: 0.01℃
• Key Operation‌: Button/Magnetic Induction/Auto-jump
• Environmental Class‌: Class A
• Protection Class‌: IP65
• Power Supply‌: 3.6V lithium battery, service life over 6 years
• Communication Methods‌: Infrared (default), RS485/M-BUS (default M-bus), 4-20mA, RF radio frequency, GPRS communication
• Communication Protocol‌: Modbus/T188/Custom (default T188)
• Installation Position‌: Water supply/return (default water supply)
• Installation Method‌: Horizontal or vertical

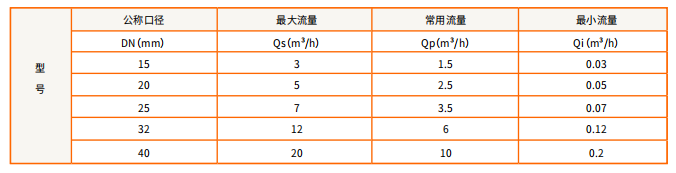

Adapt to traffic range

This manual is only applicable to small-diameter pipe section ultrasonic heat and cold meters (≤ DN40).
