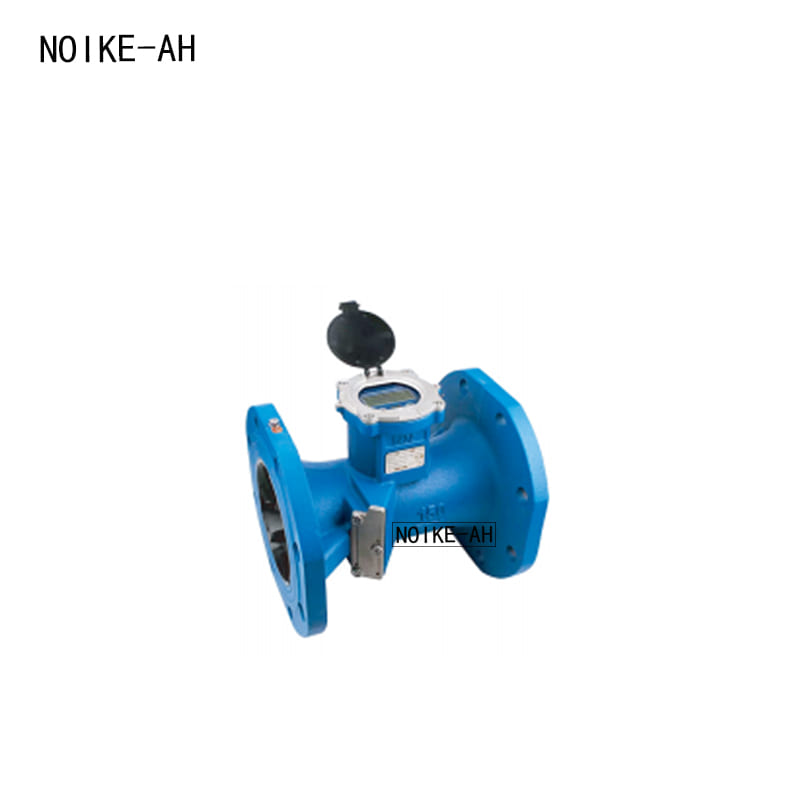

Ultrasonic Water Meter NW-3 series

Product Overview

The NW-3 series ultrasonic water meter is designed in accordance with ISO 4064-1:2005 and GB/T 778.1-2007 standards. This series of products has the advantages of high measurement accuracy, ultra-low power consumption, stable and reliable operation, and each component of the water meter is designed according to the IP68 standard, which can be applied to various harsh working environments.

Product Application

Widely used in urban sewage, water resource management, agricultural irrigation, garden management, industrial production, industrial automation control and other industries, it is a major innovation in water management technology.

Product Features

• Protection level IP68
  Whole machine: The whole machine is sealed to IP68 protection level
  Components: Each component individually achieves an IP68 protection level,
  Even if the watch body is flooded, it can still work for a long time.
• Built in quantitative controller and time-sharing accumulator
  Automatically start the controller at the set time to achieve automatic timed and quantitative water supply or irrigation;
  Accumulate traffic in a timed manner within a set time period to achieve gradient rates.
• Thermal measurement
  Equipped with dual PT1000 temperature measurement function, it can achieve heat metering,
  Especially suitable for the air conditioning and refrigeration industry.
• High-precision measurement
  Fluid layering dual channel measurement, accurate measurement.
  Ultrasonic measurement, no rotation, no worn parts, long-term guarantee of measurement accuracy, high reliability of the whole machine.
  Suitable for various water qualities, including those containing gravel and weeds.

Technical Specifications

• Measurement range: Water (20 ℃) 6-200000 I/h
• Air (0.1013MPa20 ℃) 0.05~4000m ³/h
• Range ratio: 10:1 (special type 20:1)
• Accuracy level: 1.5 (special type 1.0)
• Work pressure: DN15~DN50 PN4.0MPa (special type 32MPa)
• DN80~DN100 PN 1.6MPa (special type 25MPa)
• Jacket pressure rating: 1.6MPa
• Medium temperature: Standard -80 ℃~+140 ℃
• High temperature type 350 ℃ lining PTFE type ≤ 85 ℃
• Environmental temperature: -40 ℃~+120 ℃ (electric remote transmission type ≤ 65 ℃)
• Medium viscosity: DN15: ≤ 5mPa. S (H15.1~H15.3)
• ≤30mPa.S(H15.4～H15.9)
  DN25： ≤250mPa.S
  DN50~DN150： ≤300mpas
• LCD display: instantaneous flow display value range: 0~50000
  Accumulated traffic display value range: 0~99999999
• Output: Standard signal: 2-wire system 4-20mA
• Pulse signal: minimum interval of 50ms
• Alarm signal: collector open circuit, MAX100Ma @ 30VDC internal impedance of 100.
• Power supply: Standard type: 24VDC (10.8VDC~36VDC)
  Communication type: 220VAC (85~265VAC)
  Battery type: 3.6 @ 4AH nickel hydrogen battery
• Flange standard: HG20592 or user specified
• Threaded connection type: DIN11851 or user specified
• Electrical interface: M20 × 1.5, PG11, 1/2 “NPT
• Overall height: Standard type: 250mm (except for other installation methods)
• Protection level: IP65
• Explosion proof mark: Explosion proof type: ExdllCT6 (optional)

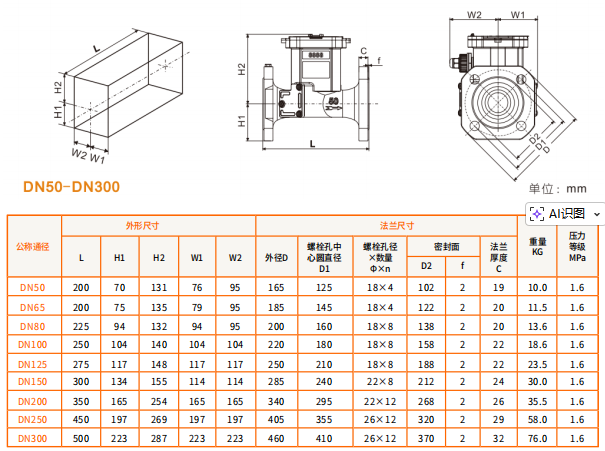

Size Chart (mm)

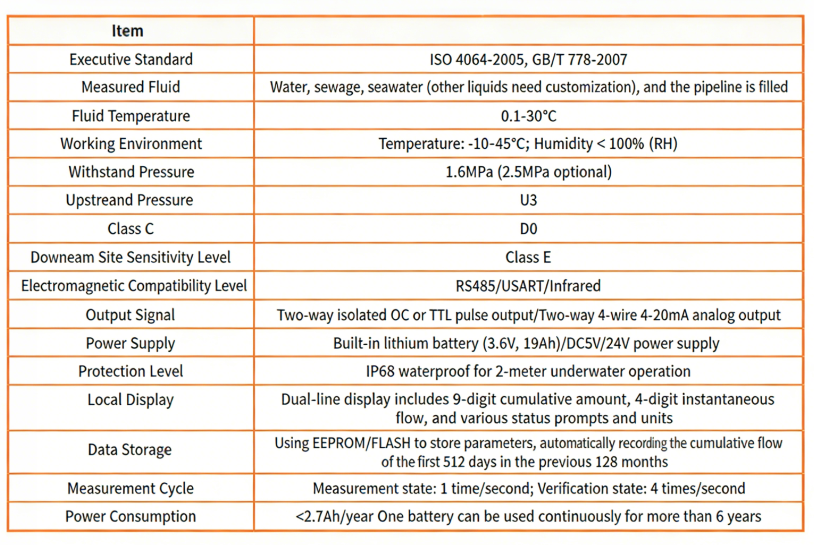

Host parameters
