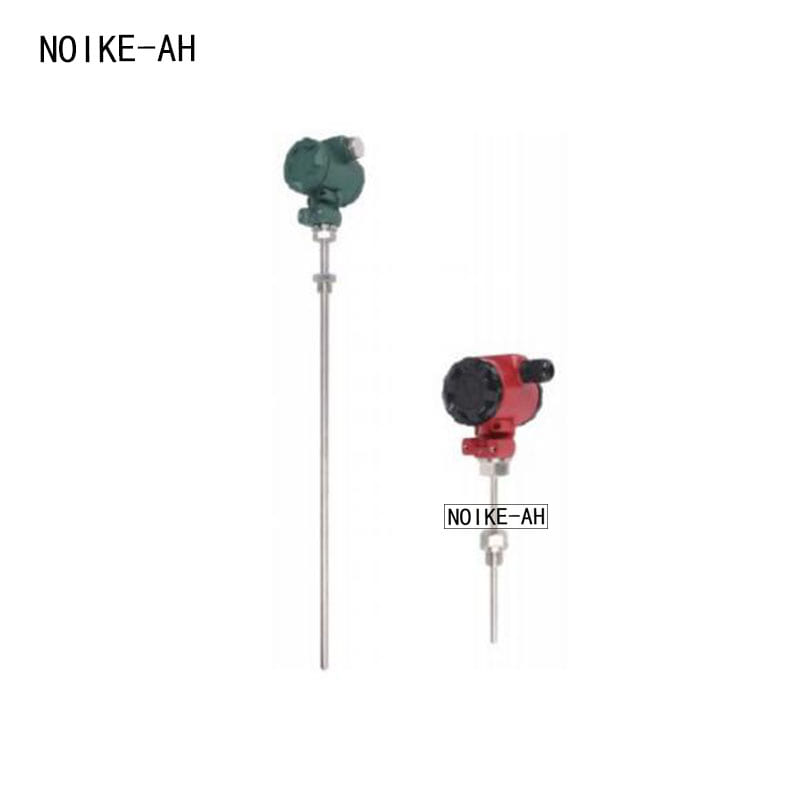

Universal Temperature Transmitter NM121 Series
Brand：NOIKE
Model：NM121 Series
Specification
Universal Temperature Transmitter NM121 Series
Product Overview
The NM121 is a temperature transmitter with a wide measurement range. It uses a thermocouple or PT100 thermal resistor for temperature measurement, and the signal is processed by the rear processing circuit and converted into a standard industrial electrical signal output. The all-metal housing design enables this series of products to be used in various industrial occasions. HART output is optional. Users can choose to install an LED or LCD digital display according to their requirements.
Product Features
Product Applications
Technical Parameters
Wiring Diagram
Connection Schematic Diagram
2-wire type: 1 2 3 4
Zanke NM121 Series
24VDC
1
2
Terminal Wiring
Selection Table
| NM121 | C2080 | A | G12M | A | 100 | D08 | Detailed Description |
|---|---|---|---|---|---|---|---|
| NM121- | NM121 universal temperature transmitter | ||||||
| C2080 | Measurement range: -20…8°C | ||||||
| C0100 | Measurement range: 0…100°C | ||||||
| C20100 | Measurement range: -20…100°C (with pulse) | ||||||
| C20150 | Measurement range: -20…150°C (with pulse) | ||||||
| C20250 | Measurement range: -20…250°C (with pulse) | ||||||
| C50100 | Measurement range: -50…100°C (with pulse) | ||||||
| C50250 | Measurement range: 50…250°C (with pulse) | ||||||
| A | 4…20mA | ||||||
| AH | 4…20mA + HART output | ||||||
| G12M | G1/2 external thread | ||||||
| G01M | G1 external thread | ||||||
| NIWI2MZ | 1/2’NPT external thread | ||||||
| NO1M | 1’NPT external thread | ||||||
| M27M | M27*2 external thread | ||||||
| A | With neck tube (above 100°C) | ||||||
| B | Without neck tube (below 100°C) | ||||||
| 100 | Probe length: L=100mm (probe rod length can be customized) | ||||||
| D06 | Probe diameter: D06=6mm (length L≤1000mm) | ||||||
| D08 | D08=8mm | ||||||
| D12 | D12=12mm | ||||||
| D15 | D15=15mm |
Wholesale of Universal Temperature Transmitter NM121 Series
Shanghai Zanke is a wholesale manufacturer of the universal temperature transmitter NM121 series. At this stage, the main products of Shanghai Zanke Company include flow switches, pressure switches, temperature switches, electromagnetic flowmeters, vortex flowmeters, turbine flowmeters, ultrasonic flowmeters, material (liquid) level flowmeters and other instruments. Application industries: petroleum chemical industry, natural gas, machinery, electric power, metallurgy, building materials, food and pharmaceutical manufacturing, agriculture, environmental protection, etc. (Our company can customize instrument specifications according to users’ special requirements and on-site working conditions, and provide installation and commissioning services.)
Well, that’s all for today’s introduction to the working principle, application fields, characteristics, installation requirements, use and maintenance of the universal temperature transmitter NM121 series. If you have any other questions, please feel free to contact us, and we will reply to you as soon as possible after receiving your inquiry.
