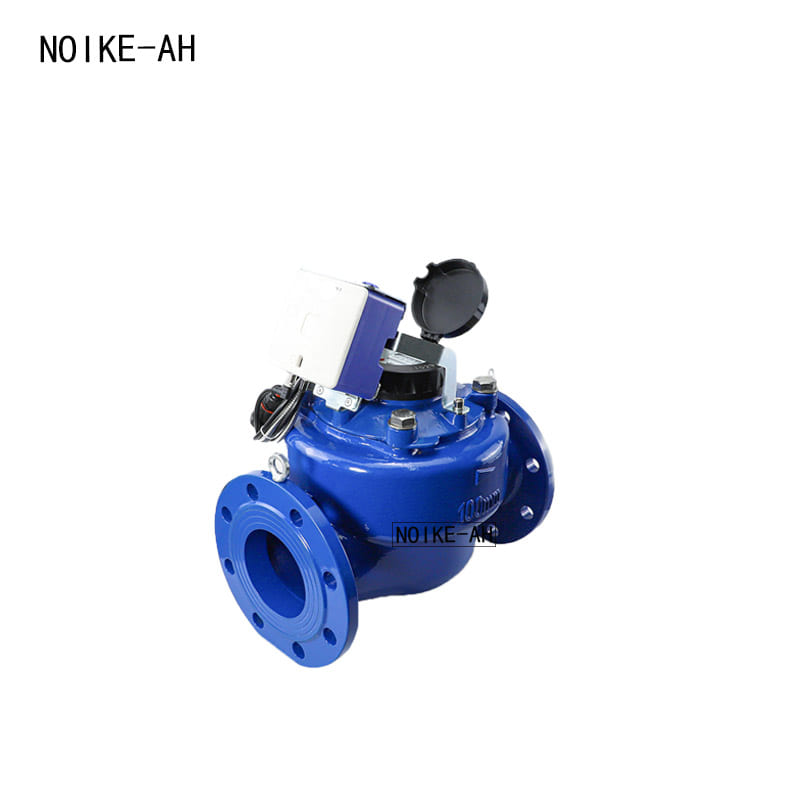

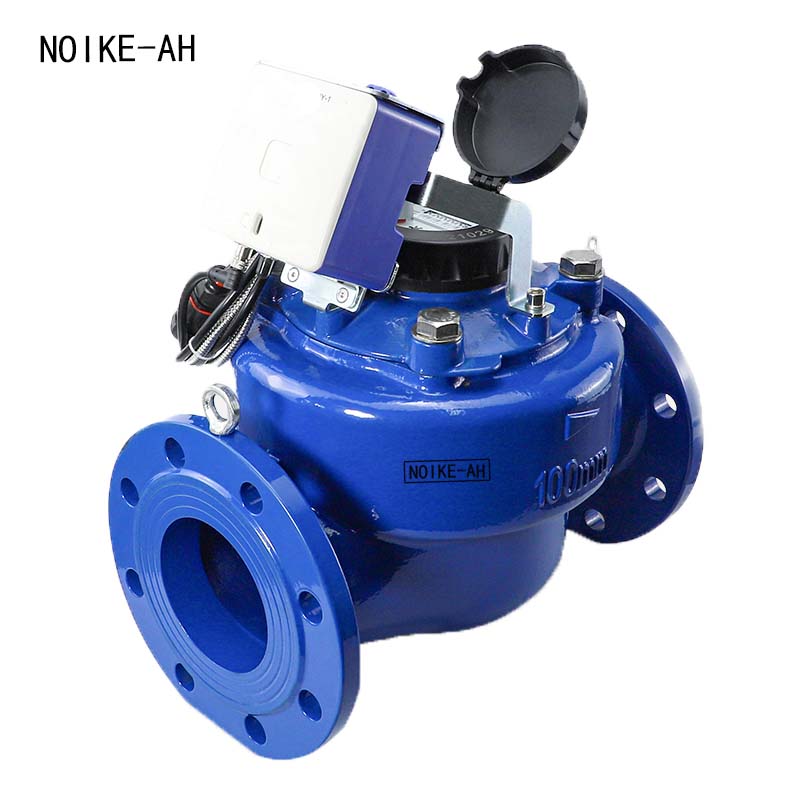

Vertical spiral-wing mechanical water meter（DN25-200）

Performance Parameters

Temperature Class: T50

Pressure Class: MAP16

Flow Field Sensitivity Class: U0/D0

Pressure Loss Class: ▲p40

Accuracy Class: Class 2

Specification

Technical parameters

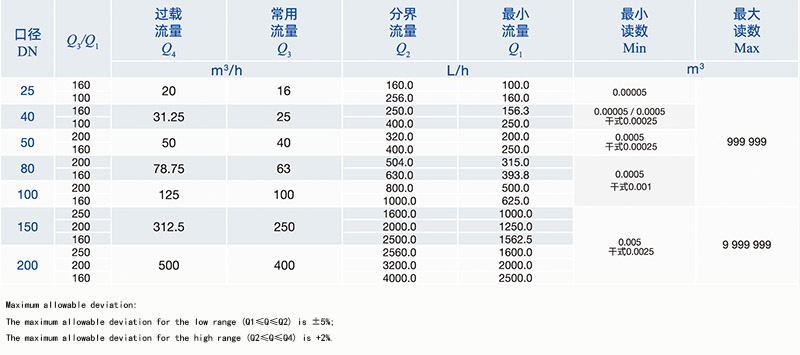

Flow Parameters

External Dimensions

Note: The external dimensions and weight are for reference only, subject to the actual product.

Product Features

Superior performance at low flow rates

Strong anti-fouling performance

Wide measurement range

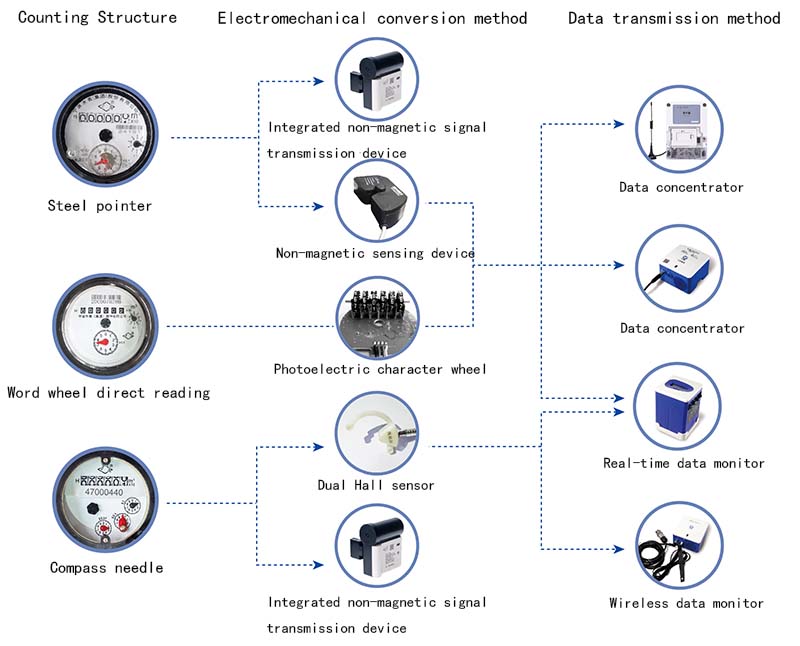

Reserved remote transmission

The requirements for straight pipe sections are low
