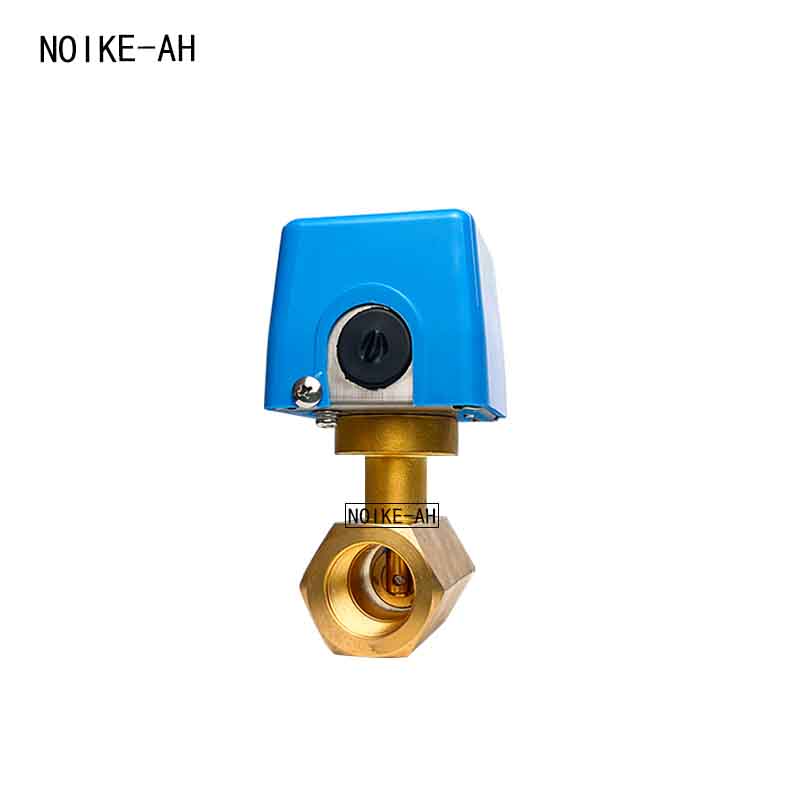

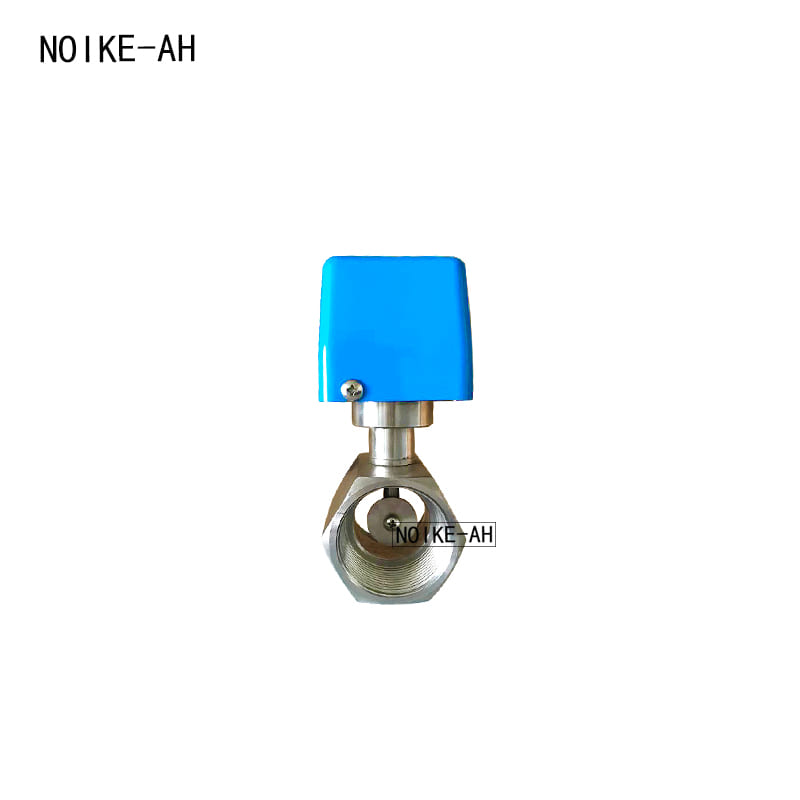

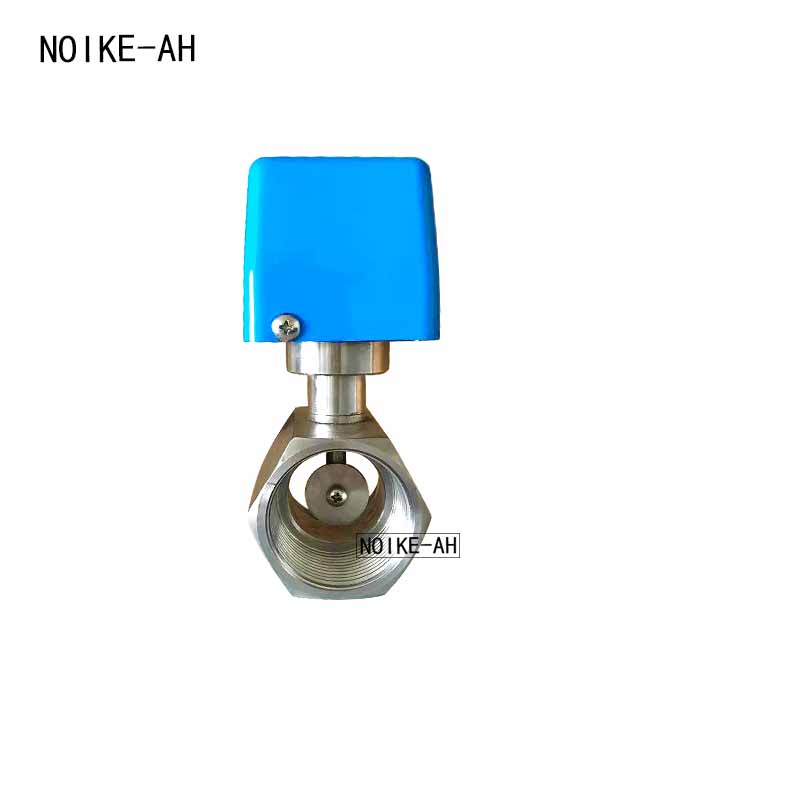

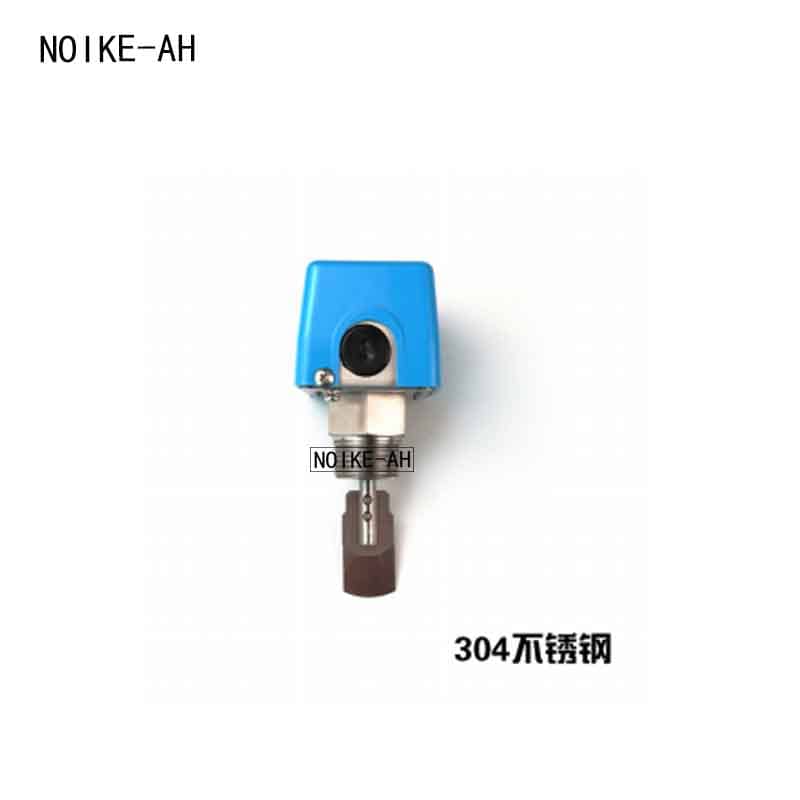

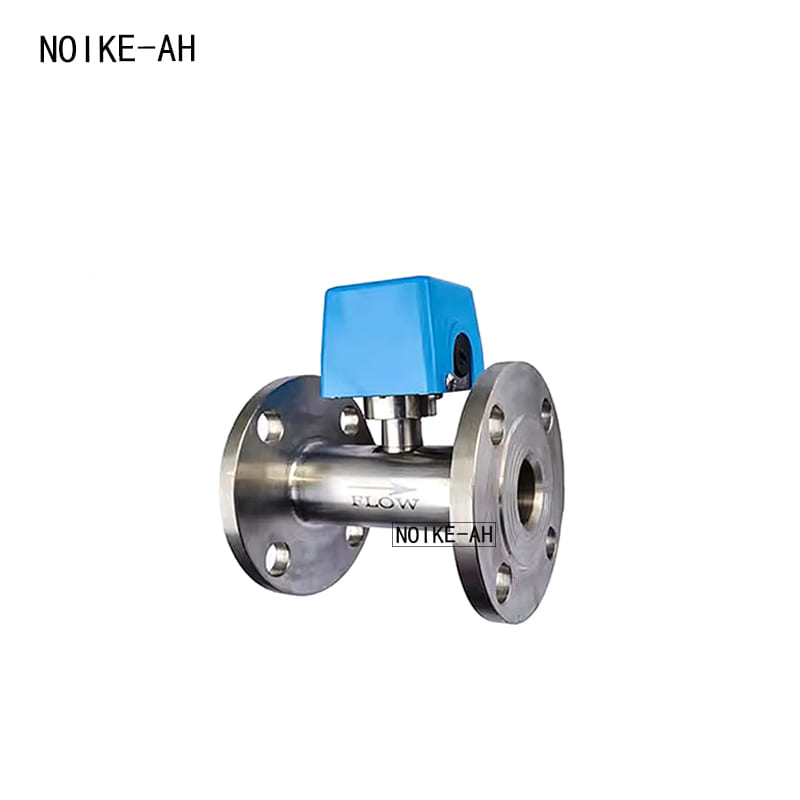

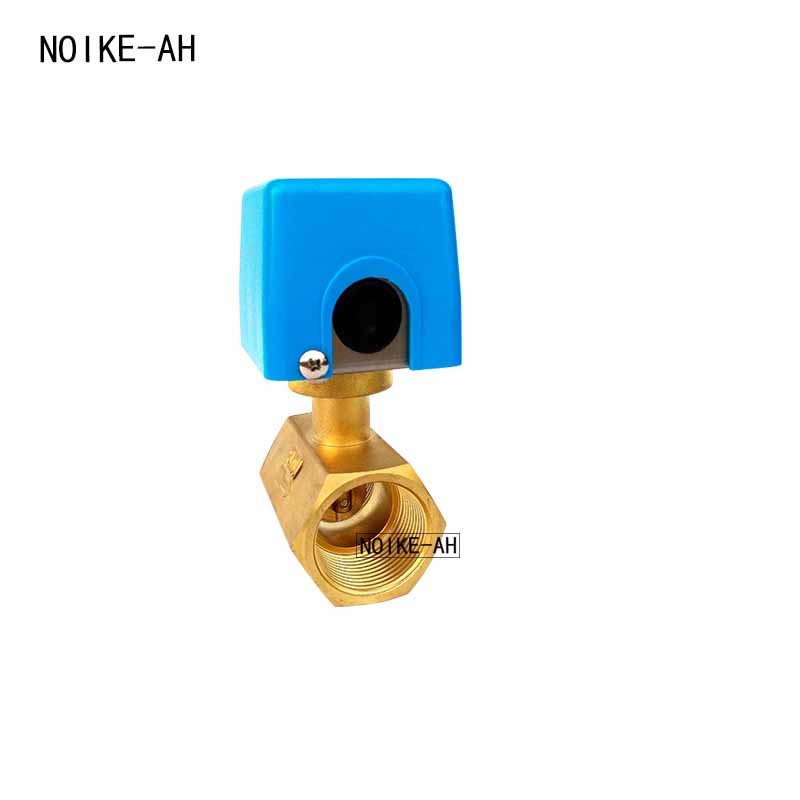

Water Flow Switch NK-01D series

Principle Characteristics

Mechanical flow switch with built-in spring-supportedMechanical flow switch with built-in spring-supportedbaffle. When the flow reaches the prefabricated value, the mechanical structure triggers the microswitch.

SPDT output, small pressure loss, mechanical part and electronic part complete isolation/flow range is large,easy to adjust and set, switch factory standard with a set of baffle (5 pieces), can be flexibly combined according to the situation, suitable for a variety of pipelines, switch has high reliability and good repetition, strong anti-pollution abilitybaffle.

When the flow reaches the prefabricated value, the mechanical structure triggers the microswitch.

SPDT output, small pressure loss, mechanical part and electronic part complete isolation/flow range is large,easy to adjust and set, switch factory standard with a set of baffle (5 pieces), can be flexibly combined according to the situation, suitable for a variety of pipelines, switch has high reliability and good repetition, strong anti-pollution ability.

Product Application

Gas-liquid dual-purpose, industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning for pipes with diameter ≥25mm.

Technical Parameters

• Setting scope: See the following table for details
• Repeatability: ±2.5% total range
• Wiring method: Terminal wiring
• Output: Normally on/normally off (250VAC,3A)
• Withstand pressure: 16bar
• Average pressure loss: 0.08bar(when flow is at its maximum)
• Ambient temperature: -25… 80 °C
• Media temperature: 90°C
• Interface thread: R1 thread
• Protection level: IP33
• Material
• Main body: stainless steel
• Process connections: stainless steel
• Connecting rod: stainless steel
• Baffle: stainless steel
• Sealed: NBR
• Shell: ABS

Wiring Diagram

Installation direction

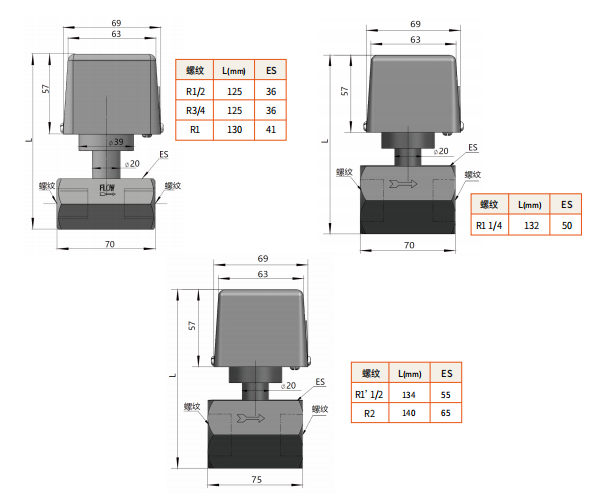

Size chart
